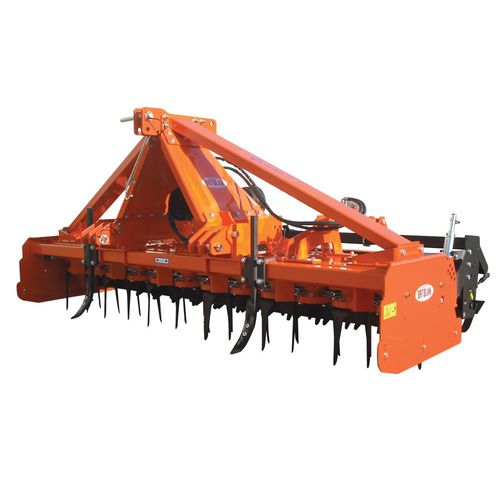

Power harrow GAMMA series

with roller

Multiple speed rotary harrow series GAMMA for tractors between 100 and 180 HP (74 - 132 KW) Strong equipment, especially recommended to prepare soils for sowing in professional Agriculture. The machine is equipped by a multiple speed transmission box that functions at 750 and 1000 rpm. It is possible to combine an eventual sowing machine using the optional hydraulic rear 3 point hitch. 3 models are available following the working width: 300, 350 and 400 cm. 750/1000 rpm multiple speed gearbox, rear PTO input shaft, drive shaft with shear bolt, movable sides, round rotors anti-choking protected by stones - 2 blades (energy low absorption) per flange, floating roller, me- chanical (or hydraulic in option) rapid adjustment of the roller in depth (cage, spiral, spiked, packer), adjustable rear clods smasher, optional subsoiler, floating 3 point hitch cat. 2nd and 3rd. Specifications Anti-flood rounds rotors Wedges for protections of rotors Knives with low assimilated power Quick hydraulic side shift for roller Floating roller Side dimensions reduced to working width Standard equipment CE standard equipment 1000 rpm 3-speed transmission (rotors speed: 341-283) 750 rpm 3-speed transmission (rotors speed: 256/394-236) Rear clods smasher Drive shaft with shear bolt Gauge roller Floating or rigid hitch cat. 2 and 3 pins Rear input shaft 2 spare blades Moving slides Floating roller
