Mounted mulcher T40 series
flailvineyard16 hammers

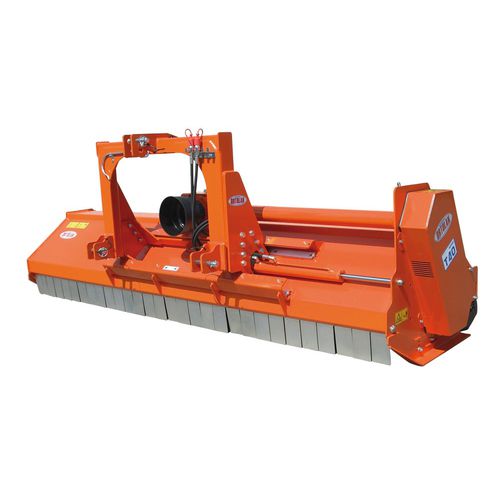

Mounted mulcher - T40 series - Ortolan - flail / vineyard / 16 hammers
Mounted mulcher - T40 series - Ortolan - flail / vineyard / 16 hammers
Mounted mulcher - T40 series - Ortolan - flail / vineyard / 16 hammers - image - 2
Mounted mulcher - T40 series - Ortolan - flail / vineyard / 16 hammers - image - 3
Mounted mulcher - T40 series - Ortolan - flail / vineyard / 16 hammers - image - 4
Mounted mulcher - T40 series - Ortolan - flail / vineyard / 16 hammers - image - 5
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
flail
Applications
vineyard
Number of hammers
16 hammers, 24 hammers, 28 hammers, 32 hammers
Number of knives
48 knives, 40 knives, 32 knives, 56 knives, 64 knives
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

Min.: 159 cm
(62.6 in)

Max.: 299 cm
(117.72 in)

Rotational speed

540 rpm
(3,393 rad.min-1)

Tractor power

Min.: 40 ch
(40 hp)

Max.: 120 ch
(120 hp)

Weight

Min.: 645 kg
(1,421.98 lb)

Max.: 2,094 kg
(4,616.48 lb)

Description

The Series T 40 is multi-purpose feature for the shredding of grass, stolons in vineyard and orchards and also cornstalks. Equipped by knives or hammers this model is available in 6 working widths, 160 -180-200-230-250-280-300 to meet all requirements: it is designed in 2 version centre mounted with 3rd point hitch, with mechanical or hydaulical side shift. It has the 2° cat. linkage to tractor, a gearbox PTO 540 r.p.m. with free wheel, rear roller Ø 193, skids, side belt drive, double steel frame and openable bonnet for maintenance. On request the machine can be supplied with steered wheels. •CE standard equipment •540 rpm transmission with free wheel (1910 rpm) •3 pt. hitch cat. 1 and 2 pins •Rear roller with scraper Ø 193 •Adjustable skids •Rear openable bonnet •Transmission belts: 4 on T40 160-180-200-230 •Transmission belts: 5 on T40 250-280-300
