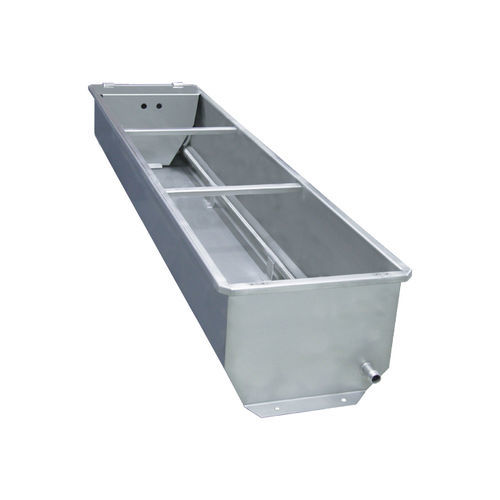

Calf drinker AS ULR series

cattletroughstainless steel

•with zinc-coated frame 400.201 (FM) or wall brackets 400.205 (WM) •drinking trough with U-pipe (ULR ¾” or 1″) for connection to a circulation line •½” float valve connection up to 2 m length: inlet 30 l/min at 3 bar flow pressure •¾” float valve connection up to 3 m length: inlet 100 l/min at 4 bar flow pressure •with hinged cover and large drain plug (d = 150 mm) for quicker cleaning •float valve mounted on left, plug on the right (or reverse if desired) •other lengths and dimensions on request •optional: - additional heating 551.590 oF - ZAK (ball valve located in front of and behind the float valve and a drain outlet) -HAASE installation box IKL1 500.005
