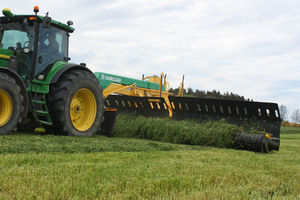

Belt rake 2114

side delivery

Exclusive full-width pickup with wide-swath capability in a single head merger, the pull type Oxbo 2114 single forage merger is designed to give smaller producers the same benefits and features of our proven triple mergers. The affordable Oxbo single merger provides all the advantages of merging for smaller operations, including “hay-in-a-day.” FEATURES & ADVANTAGE .Two models- 12 or 14 foot full width pickups head allow for wide swathing and faster dry down .Pickup in any direction or behind any size mower, no need to follow the windrow .Heavy-duty head has the same design as the Oxbo triple mergers .Self-contained, PTO driven hydraulic system needs only a 70 HP tractor KEY FEATURES 40" WIDE CONVEYOR The wide conveyor easily handles heavy crops and has a 5° rear slope to move crop further back on the conveyor for a smooth, consistent windrow. CENTER SWING CHASSIS The chassis can swing and discharge to the left or right depending on your needs. HEAVY-DUTY HYDRAULIC DRIVE MOTORS Powerful motors provide higher torque at the heads and conveyors easily handle heavy crop without stalling. The drive motors on each end of the conveyor can be switched to pull conveyor in either direction, never pushing the belt. SINGLE BUTTON CONVEYOR CONTROL The 2114 uses simple and easy to use control for starting, stopping and controlling the direction of the conveyor.
