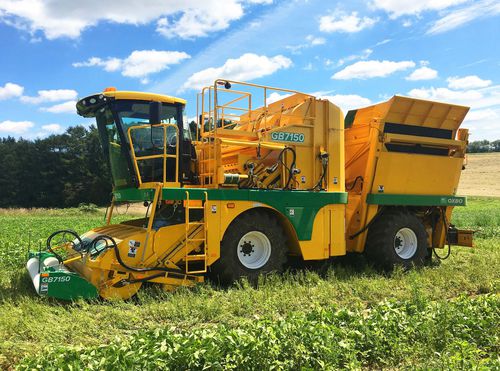

Bean harvester machine GB7150
self-propelled

Bean harvester machine - GB7150 - Oxbo - self-propelled
Bean harvester machine - GB7150 - Oxbo - self-propelled
Bean harvester machine - GB7150 - Oxbo - self-propelled - image - 2
Bean harvester machine - GB7150 - Oxbo - self-propelled - image - 3
Bean harvester machine - GB7150 - Oxbo - self-propelled - image - 4
Bean harvester machine - GB7150 - Oxbo - self-propelled - image - 5
Add to favorites
Compare this product


Characteristics

Crop type
bean
Mobility
self-propelled
Engine power

209 kW
(284.2 hp)

Empty weight

17,170 kg
(37,853.4 lb)

Total length

9,900 mm
(389.8 in)

Total height

3,950 mm
(155.5 in)

Total width

3,500 mm
(137.8 in)

Description

CABIN The climate controlled Vista II Claas cabin, with CCTV camera system, allows excellent all round visibility and operator comfort. The 12” touch-screen monitor provides easy access and control of all key harvester functions. RUBBER MOUNTED Plants are presented to the rubber mounted picking tines by the plant aligning brushes. An optional plant aligning belt is available to replace the brushes. HIGH CAPACITY HOPPER The high capacity hopper has variable discharge height. Beans are discharged from the hopper by the plastic interlocking conveyor for gentle unloading. ARTICULATED FRAME The articulated frame enables the machine to operate in areas of limited access and minimizes unharvested crop as the rear wheels follow the path of the front wheels. The crab steering feature on the front wheels maximizes clearance between the wheels and the unharvested crop in adverse conditions. The Oxbo GB7150 has been specifically designed for the harvesting of green beans. A well proven concept the machine continues to evolve, incorporating continuous design improvements for better performance and reduced maintenance. Suitable for both processing and fresh market produce the GB7150 offers a gentle unloading system with its high capacity variable height discharge hopper and optional plastic interlock conveyor. The harvester is a four-wheel hydrostatic drive machine powered by a liquid cooled turbo charged intercooled engine. Unharvested crop damage is kept to a minimum by the path of the articulated frame, which enables the machine to work in small areas, and also by the crab steering on the front wheels which maximizes clearance between the wheels and crop.
