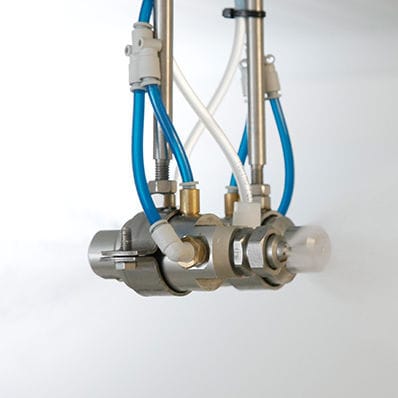

Misting humidifier

for storage buildingsuspendedautomatic

Benefits Hygrostat-controlled system to maintain optimised humidity in large corridors or air handling and preparation systems for setters and hatchers. The humidifier set combines clean water with pressurised air, to automatically deliver a fine, even mist and maintain humidity levels to required set-points. Reduces the need for additional humidification in the machines, resulting in more stable climate control. How it works -The required level of relative humidity (RH) is set on the electronic Hygrostat -A surface mounted RH sensor monitors humidity continuously, triggering a controlled volume of water-spray as and when needed, to maintain optimum RH -Compressed air transports the required amount of water as a fine, even spray -The spray evaporates quickly to restore the correct level of humidity Technical specifications Capacity - 4,000 m3/hour Water capacity - Adjustable between 10 - 40 ltr/hour Fan speed - 1,420 RPM Range / throw - 20 - 35 m Installed power - 0.4 kW Supply water pressure - 1 - 6 bar Diameter - 560 mm Length - 420 mm Weight - 38 kg Material - Stainless steel, easy to clean body Including - Connection kit
