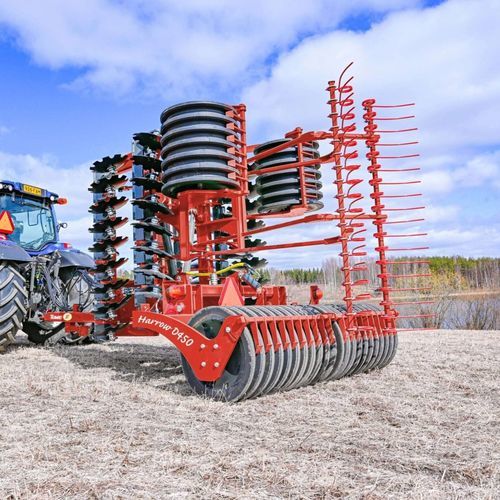

Towed disc harrow D series

1-section3-sectionwith hydraulic adjustment

Harrow D disc harrow is suitable for tilling, light tillage and seedbed preparation.When operating a disc harrow coupled to the tractor lift arms, a significant percentage of the total work time is spent in headlands and corner turns, which require the harrow to be raised off the ground. The towable harrow can be run on fields without having to be lifted at headlands, thus significantly improving work efficiency. The disc harrow is run around the perimeter of the field, because good towability allows the cultivator to operate also in curves. The disc harrow is either in its working position or supported on its rubber rear packer, so that the tractor’s rear wheels will not exert excessive ground pressure, as normal harrows coupled to the tractor lift arms do. This prevents soil compaction. Simple and heavy-duty frame. The disc harrow’s heavy-duty, open and nearly uncloggable construction ensures the effective mixing of straw and plant waste into the cultivated layer. Fixed, solid rubber packers are mounted at the rear of the machine, and the working depth is adjusted with hydraulic working discs. Working depth can be adjusted from 0–15 cm. The disc transport height is 30 cm. Turf tilling with the versatile towable disc harrow Harrow D is also suitable for seedbed preparation and it is designed to deliver top performance regardless of the conditions. Turf tilling differs from stubble tilling in that it requires two passes and places greater demands on the machinery. If the turf is removed chemically, it will soften as it dies, thus making the tilling considerably easier. It is also possible to till growing turf.
