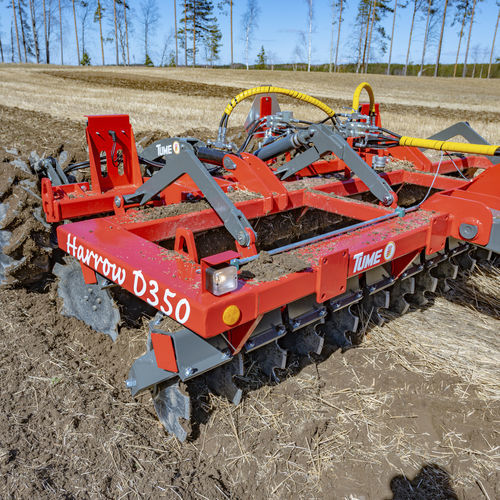

Towed disc harrow Disc Harrow series

2-sectionwith rollerwith hydraulic adjustment

Tume Harrow D Harrow D disc harrow is suitable for tilling, light tillage and seedbed preparation. The disc harrow is run around the perimeter of the field, because good towability allows the cultivator to operate also in curves. The disc harrow is either in its working position or supported on its rubber rear packer, so that the tractor’s rear wheels will not exert excessive ground pressure, as normal harrows coupled to the tractor lift arms do. This prevents soil compaction. Simple and heavy-duty frame. The disc harrow’s heavy-duty, open and nearly uncloggable construction ensures the effective mixing of straw and plant waste into the cultivated layer. In the field, the machine travels on pairs of tyres with separate bearing. During transport, the two middle pairs touch the road. The harrow can also be lifted to travel on these middle tire pairs at headlands and other such places without having to adjust the working depth. The structure is highly durable. Working depth can be adjusted from 0–15 cm. The disc transport height is 30 cm. Turf tilling with the versatile towable disc harrow Harrow D is also suitable for seedbed preparation and it is designed to deliver top performance regardless of the conditions. Turf tilling differs from stubble tilling in that it requires two passes and places greater demands on the machinery. If the turf is removed chemically, it will soften as it dies, thus making the tilling considerably easier. It is also possible to till growing turf. To make the tilling of growing turf easier, the turf should be quite short in order to minimize the amount of soil mass being tilled and mixed.
