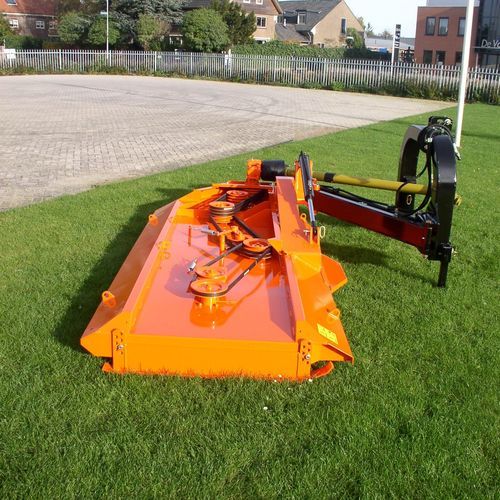

Arboriculture rotary cutter SV2-275

rear-mountPTO-driven

The SV2-275 is a robust, V-belt driven mower with the possibility to work completely offset. This way, it is possible to mow crops without the tractor wheels driving over them first. In combination with a front mower, a total working width of over 6 metres (19’ 8’’) is possible! The SV2-275 is a sturdy rotary mower that can work completely offset. The maximum mowing range is a good 3.85 metres (12’ 8’’) from the middle of the tractor. The well-thought out drive with automatic V-belt tensioning makes for an efficient transmission to the cutting blades. The profiled skids provide the SV2-275 with an excellent terrain adaptation; the machine independently adapts to the terrain. To further optimize the terrain adaptation, a rear roller can be installed. The mower can be folded up vertically for road transportation. Specifications Rpm: - - PTO (rpm) - 540 - Rotors (rpm) - 1685 Min. power required at 540 rpm (kw/hp) - 29/40 Number of blades - 3 Cutting height (cm) - 4-14 Tractor 3 pt. linkage (cat) - II Weight (kg) - 675 Offset from centre of tractor: - - minimum (cm) - 225 - maximum (cm) - 385
