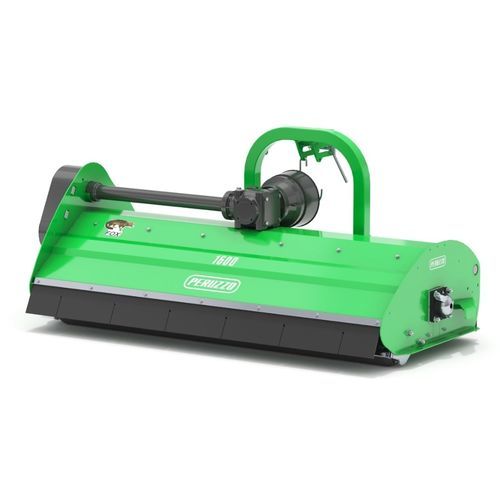

Rear-mount mower FOX-S
flail32 bladesPTO-driven

rear-mount mower
rear-mount mower
rear-mount mower
rear-mount mower
rear-mount mower
rear-mount mower
rear-mount mower
rear-mount mower
rear-mount mower
Add to favorites
Compare this product


Characteristics

Mounting
rear-mount
Technology
flail
Number of blades
32 blades
Other characteristic
PTO-driven, grass, with roller conditioner, for tractors, weeding, with shredder
Working width

Max.: 1,500 mm
(59.06 in)

Min.: 1,160 mm
(45.67 in)

Power required

Max.: 45 kW
(61.2 hp)

Min.: 35 kW
(47.6 hp)

PTO speed

540 rpm
(3,392.9 rad.min-1)

Weight

Max.: 210 kg
(463 lb)

Min.: 180 kg
(396.8 lb)

Description

The new flail mower mod. FOX-S has been engineered from customer requests of a light flail mower with manual or hydraulic offset possibility. The flail mower mod. FOX is used for grass cut (Mulching) and verticut on grass fields for areation activity. The flail mower Fox is Engineered to be mounted on light tractors three points linkage with low HP power and with high PTO shaft linkage position. This flail mower can be fitted on rear tractor three points linkage only, performing an excelent gruss cutting (mulching). The flail mower Fox can be fitted with different flails for grass or small branches cuttuning. Rear Mounted Side Shift Flail Mower for 15 to 30 Tractor HP. The FOX S Side Shift Flail Mower was Made Due to Requests for a Light Flail Mower with Manual or Hydraulic Offset Options & is Suitable for 15 to 30 Tractor HP. Flail Options Accomodate Applications for Grass or Small Branches. The Fox S Flail Mower is Applicable to Rolling Ground, Grass Fields, Municipalities & Sports Grounds. It's High RPM on the Flail Shaft & Quantity of Flails Gives an Excellent Cut & Mulching Quality. Excellent Verticut Action is Done by Adding the Vertical Blade. It Can be Fitted on Rear Tractor 3 Point Linkage.

VIDEO

Catalogs

Fox
Fox
2 Pages
