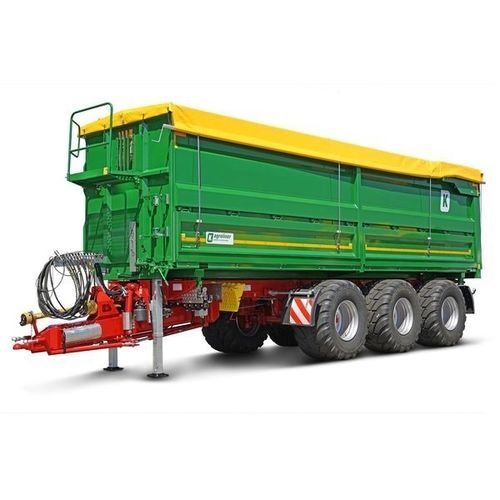

Dump trailer MUK402

3-axleagricultural20 t...40 t

Our Tridem range gives you loading volumes up to 50 m³ with a maximum permitted total weight of 34 tonnes. Alongside the standard parabolic spring suspension, hydraulic and pneumatic suspension systems are available. In the basic version, both front axles are fixed and the third axle is a self-steering axle. From the manufacturer's view, we recommend a forced steering system for the first and the third axles. Basic version The basic version of the MUK402 offers a solid foundation for many purposes with an attractive price/performance ratio. Included in the basic version are: Tyres:6 x 425/65 R22.5 factory refurbished tyres on centre well rims, approved for 80 km/h Axles:ADR axles 3 x 12 tonnes (60 km/h), 2150 mm track width (technical 105 km/h), wheel brake 420 x 180 mm, 150 mm square axle Springs:36 tonnes parabolically suspended linked steering unit with dynamic brake compensation,1550 mm axle wheelbase Steering:3rd axle carried out as self-steering axle, hydraulic lock Draw gear - rigid towing device with Scharmüller parallel shank drawbar head Type K80, 4 tonnes drawbar load up to 40 km/h (2 tonnes when more than 40 km/h), mechanical saddle landing gear with rapid speed Chassis frame:steel-welded construction, main load bearer made from torsion-resistant square tube profiles Brake system:dual line service brake system with automatic load-dependent brake force control (ALB), 6 x diaphragm brake cylinders, spindle parking brake acting on one axle Tipping system:rearwards tipping system, hydraulic multi-piston press, 1 line system, hydraulic stroke limiter, safety rope
