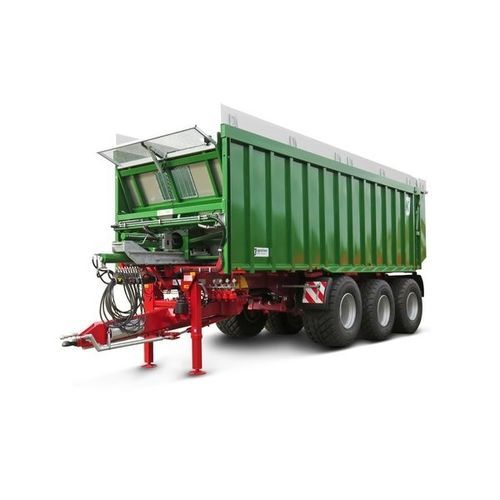

Dump trailer TAW30

3-axleagricultural21 ton

Due to the horizontal pusher system, the highest possible operational security is guaranteed. So that the load can be pushed off with the lowest possible friction values, the agroliner pusher trailer has a stainless steel base as standard and the pusher plate is coated with VA sheet steel plates. The side panels are designed to be torsion-resistant so that the seal, particularly with bulk cargo such as rapeseed and grain, is guaranteed to be long-lasting. The standard large volume tailgate effectively increases the loading volume. Basic version The basic version of the TAW30 offers a solid foundation for many purposes with an attractive price/performance ratio. Included in the basic version are: Tyres - 6 x 425/65 R22.5 factory refurbished tyres on centre well rims, approved for 80 km/h Axles - ADR axles 3 x 12 tonnes (60 km/h), 2150 mm track width (technical 105 km/h) wheel brake 420 x 180 mm, 150 mm square axle Springs - 36 tonnes parabolically suspended linked steering unit with dynamic brake compensation, 1525 mm axle wheelbase Steering:3rd axle carried out as self-steering axle, hydraulic lock Draw gear:rigid towing device with Scharmüller parallel shank drawbar head Type K80, 4 tonnes drawbar load up to 40 km/h (2 tonnes when more than 40 km/h), mechanical saddle landing gear with rapid speed Chassis frame:welded construction, main load bearer made from weight-optimised I beams Brake system:dual line service brake system with automatic load-dependent brake force control (ALB), 6 x diaphragm brake cylinders, spindle parking brake acting on one axle
