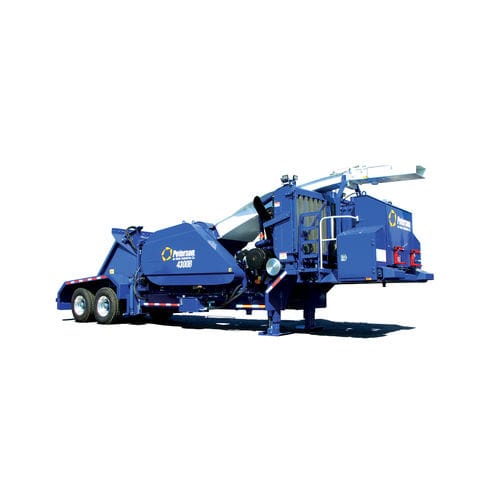

Self-propelled wood chipper 4300B

with combustion enginehydraulic supply

The 4300B drum chipper is the latest in a long line of high quality chipping and grinding machines produced by Peterson. The 4300B drum chipper is suited for high volume biomass producers who have a wide variety of feed material, from logs up to 26 inches (61 cm) in diameter, to brush and small feedstock. Powered by a C18 Caterpillar engine, the 4300B Drum Chipper is powered by 765 horsepower (570 kW). At 52,000 pounds (23,586 kg) and 8 feet 4-3/4 inches (255 cm) in width, the 4300B is a high production chipper whose dimensions do not require any oversize permits for road transportation. The chipper utilizes a 36 inch diameter by 40 inch wide (91 by 102 cm) drum with wear resistant AR450 wear surfaces on the drum pockets and shell. A sloped feed deck makes feeding the chipper easier. The optional material sizing bars and chip accelerator minimize oversize twigs and branches in the chips, and help ensure tight chip packing and fully loaded chip vans. Traditional babbitt type knife systems are standard equipment. Chip length can be changed from 1/4 to 1-1/4 inches (6 to 32 mm) by adjusting knife extension and feed speed. The 4300B’s new generation of controls includes Peterson’s high-production Adaptive Control System. The new control panel provides self-diagnosis for faulty sensors and open circuits. Fault indicators make troubleshooting easy. The 4300B control panel features an LCD display that provides the operator the complete engine and system parameters to simplify setup and efficiently operate the machine.
