Seed pre-cleaner X series

vibrating meshwith aspiratorintensive cleaning

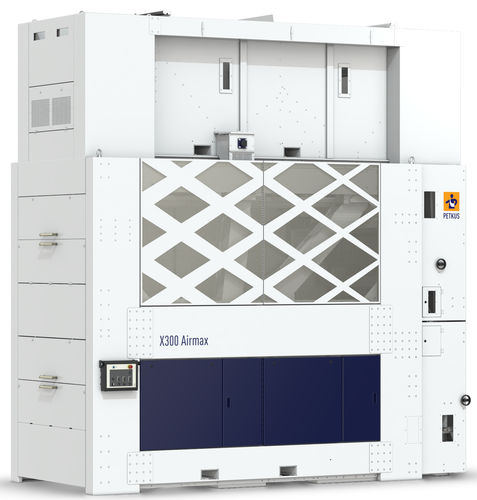

With a capacity of up to 300t/h, the PETKUS X Series offers precise cleaning results in addition to high throughput for pre-cleaning and industrial cleaning of seeds and commodities. The combination of an advanced screening design with a pre-aspiration system and multi-level post-aspiration system achieves unmatched sorting quality at high capacity. The X-Cleaner incorporates a modular design that allows flexibility to adapt the installation to different spaces. The basic screen module A consists of two screen compartments with 4 screen levels each, where coarse and fine impurities are removed. The X-Cleaner also offers the potential to process two different products in parallel without cross-contamination. In the upper module (B), the unique implementation of scraper chains ensures the even distribution of products along the entire screen length and a continuous product flow. This feature allows for extremely efficient screening. After sieving, the product is transported to the two-level aspiration system (C module). Due to the re-circulation of air, air flow and thus energy usage are minimized while maintaining the same performance. Features Modular design (A, B, and C modules) Module B can be potentially located on another level Air recirculation in module C for air and energy efficiency and savings Easy replacement of sieves Simultaneous cleaning of two products without cross contamination Dual, parallel air sifting systems Consistent width distribution of the product over the entire screen area Large screen area on a small footprint
