Circular saw firewood processor TL-K 650
with chainsawwith belt conveyor

circular saw firewood processor
circular saw firewood processor
circular saw firewood processor
circular saw firewood processor
circular saw firewood processor
circular saw firewood processor
circular saw firewood processor
Add to favorites
Compare this product


Characteristics

Type
with chainsaw, circular saw
Option
with belt conveyor

Description

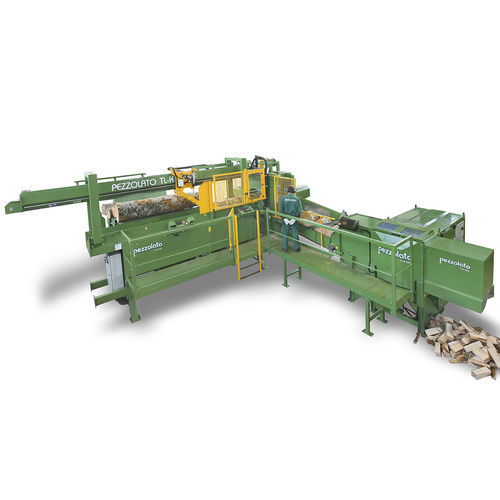

This industrial plant consists of the TL650 cutting system and a KX650 or KV700 automatic log splitter. Introduced in 2022, it was designed to be a complete cutting-splitting system of small dimensions, but capable of processing large logs (diameter up to 650 mm) and splitting logs, producing firewood with a programmable section. This plant is equipped with an automatic process for the elimination of waste during the cutting phase, requires a limited energy supply (52 kW) and allow optimisation of the cycle time in relation to the size of the logs to be produced. A solution that guarantees high productivity with a only one operator. TL650 – Cutting station The TL650 cutting system, designed to work in semi-automatic mode with a single operator, is equipped with a SUPERCUT Hultdins 800mm saw unit with professional .404 chain, which ensures always precise cuts. The log is pushed from behind by a feed arm. Adjustment of the cutting length (variably adjustable with a minimum end length of 220 mm) for logs up to a maximum diameter of 650 mm is carried out electronically, with the cut being ejected and the log then processed without residue or split by computer – an optimised method without a cut. PLC control is optional to make the processing totally automatic and allow remote assistance via Ethernet router. With the PLC option, it is possible to install a hydraulic Rear log-pusher to support the last two cuts of the log, binding their correct positioning.

Catalogs
