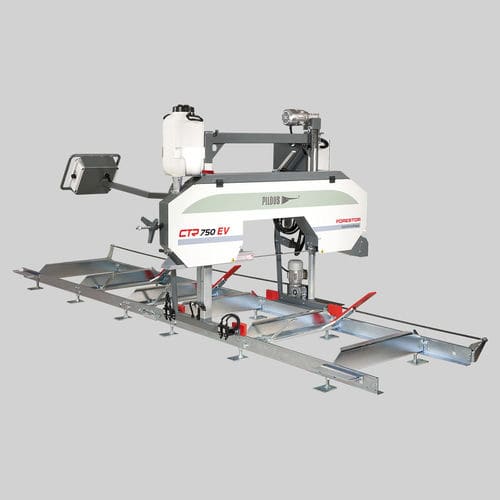

Band sawmill CTR 750 EV

horizontalstationarywith belt conveyor

Feed into the cut and back – motor-powered Arm height adjustment – motor-powered Control panel – on a mobile bridge Log handling – manual The bigger and stronger version of the popular CTR 550 allows for processing of logs up to 75 cm in diameter. It also uses a bimetallic metal-cutting saw bands, but it is one size bigger. While the size of the bimetallic saw band in CTR 550 is 27 x 0.9 mm, the size of the band in CTR 750 is 34 x 1.1 mm, which, combined with a powerful 5.5 kW engine, can deal with logs of large diameters. Compared to CTR 750 E with mechanical feed into cut and back this model is equipped with a motor-powered saw band arm height setting in order to achieve the highest possible productivity. Automatic feed into the desired cut thickness occurs after you set it up on a colour touchscreen. Saw band arm height adjustment is facilitated by a chain gear powered by a worm-gear fitted, frequency converter-controlled electric motor. You can simply set up the desired cut thickness along with optional setting of a required material kerf coefficient on the touchscreen. Frequency converter-controlled arm movement with a slow-down at the end positions ensures accurate feed into required values. The feed into the cut and back is driven by an electric motor with a worm gearbox controlled by a frequency converter. You can change the speed of travel simply by turning the potentiometer on the control panel. End positions are secured against impact by means of automatic deceleration and stopping. This greatly increases operator’s comfort, prevents human factor related errors during manual settings and increases the overall productivity.
