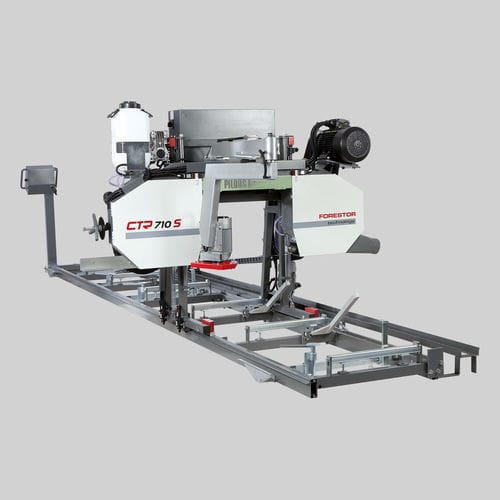

Band sawmill CTR 710 S

horizontalstationarywith belt conveyor

Feed into the cut and back – motor-powered Arm height adjustment – motor-powered Central control panel – stationary Log handling – manual Smaller, but truly professional saw band in all respects. Execution of main technical parts, such as the running wheels in their mounts, construction of the saw band arm, engine and feeding systems, etc., are completely identical to those in CTR 800 series or in very powerful CTR 950 Hydraulik and CTR 1000 H/40 series. Continuously adjustable machine feed into the cut and back and saw band arm height adjustment. Travel speed is displayed on the digital display. In this type of machine the central panel is stationary, placed on the beginning of a basic running gear section. This allows convenient control of the machine from a single location. The feed into the cut and back is driven by an electric motor with worm gearbox controlled by a frequency converter. You can change the speed of travel simply by turning the potentiometer on the control panel. End positions are secured against impact by means of limit switches with automatic deceleration and stopping.
