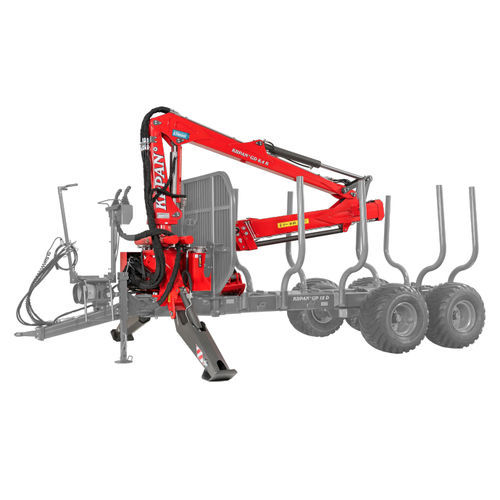

Log loader GD 8,6 K

Log loader - GD 8,6 K - PISEK - Vitli KRPAN d.o.o.
Log loader - GD 8,6 K - PISEK - Vitli KRPAN d.o.o.
Add to favorites
Compare this product


Characteristics

Load rating

680 kg
(1,499.1 lb)

Reach

8.6 m, 9.2 m
(28'02" , 30'02" )

Description

Lifting Torque net:58 kNm Lifting Torque gross:82 kNm Lifting Capacity at 4 m with Grab - 1670 kg Weight:1706 kg * Slew Torque:19 kNm Slewing Angle:380 ° System Pressure:230 bar Oil Quantity in Tank:100 l Slew Cylinders:4 Telescopic Stages:2 Support Legs (A or "flap down") by choice:"flap down" Crane Rotating Gear in Oil Bath:Standard Self Sufficient Hydraulic System with Pump:Standard 3 Point Linkage:Optional Control with Mechanical Joysticks:Optional Cross Lever Control with el. ON/OFF Functions:/ Prop.-hydraulic (low pressure) Joystick control:Standard Control with Proportional Electrical Joysticks:Optional High Seat Control:Optional Radio Remote Control:Optional ** Control Lever Protection:Standard Double Cast-Iron Pump (tandem) with Double Circuit Control:Optional *** Piston Pump:/ Single Flow Piston Pump with Multiplier:Optional Double Flow Piston Pump with Double Circuit Control:Optional LS Tractor System without its Own Hydraulic System:Optional Oil Cooler:Standard
