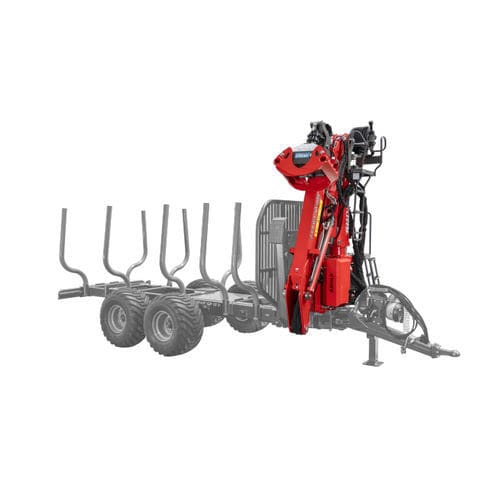

Log loader GD 8,4 Z

Crane rotating gear in oil bath / support legs ''flap down'' / rotator 45 kN / grab GR 130 / self sufficient hydraulic system with cast iron pump - hydraulics group 3 / oil cooler/ proportional hydraulic (low-pressure) joystick control / large oil tank with 100 l capacity / standing platform / control lever protection / operating hours counter - pressure Tehnical features Lifting Torque net:60 kNm Lifting Torque gross:84 kNm Lifting Capacity at 4 m with Grab:1427 kg Weight:1855 kg * Slew Torque:22 kNm Slewing Angle:370 ° System Pressure:230 bar Oil Quantity in Tank:100 l Slew Cylinders:4 Telescopic Stages:2 Support Legs (A or "flap down") by choice:"flap down" Crane Rotating Gear in Oil Bath:Standard Self Sufficient Hydraulic System with Pump:Standard 3 Point Linkage:Optional Control with Mechanical Joysticks:Optional Cross Lever Control with el. ON/OFF Functions:/ Prop.-hydraulic (low pressure) Joystick control:Standard Control with Proportional Electrical Joysticks:Optional High Seat Control:Optional Radio Remote Control:Optional ** Control Lever Protection:Standard Double Cast-Iron Pump (tandem) with Double Circuit Control:Optional ***
