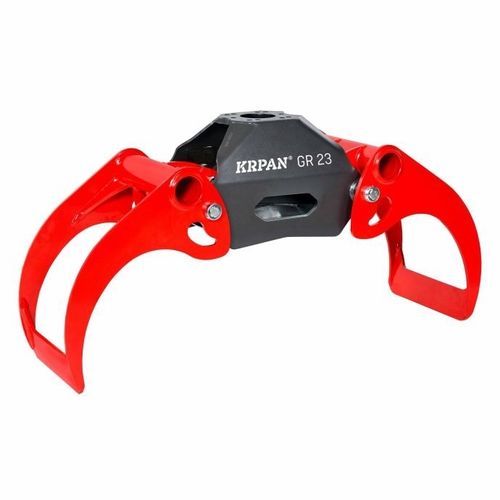

Forestry log grapple GR 23for cranes
Add to favorites
Compare this product
Characteristics
- Applications
- forestry
- Mounting
- for cranes
Description
Max. Opening Width:1375 mm
Load Capacity:4500 kg
Weight:155 kg
Tehnical features
Max. Opening Width:1375 mm
Smallest Diameter:82 mm
Length - closed:780 mm
Height - closed:550
Height - open:730 mm
Width 1:494 mm
Width 2:450 mm
Width 3:402 mm
Height - partly closed:835
Cross-Section:0,23 m2
Max. Operating Pressure:250 bar
Gripping Force at Max. Pressure:14,6 kN
Load Capacity:4500 kg
Weight:155 kg
