Electric log splitter CV 26 EK pro
verticalPTO-drivenautomatic

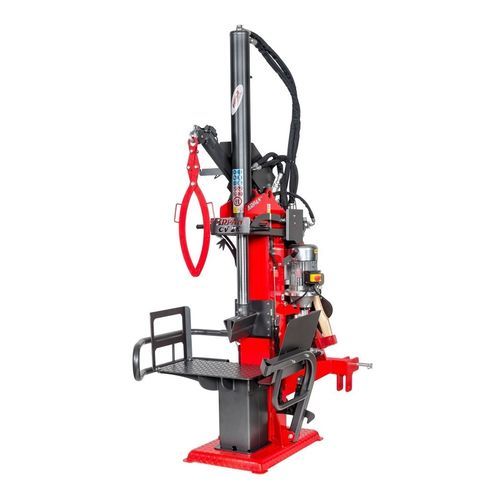

Electric log splitter - CV 26 EK pro - PISEK - Vitli KRPAN d.o.o. - vertical / PTO-driven / automatic
Electric log splitter - CV 26 EK pro - PISEK - Vitli KRPAN d.o.o. - vertical / PTO-driven / automatic
Electric log splitter - CV 26 EK pro - PISEK - Vitli KRPAN d.o.o. - vertical / PTO-driven / automatic - image - 2
Electric log splitter - CV 26 EK pro - PISEK - Vitli KRPAN d.o.o. - vertical / PTO-driven / automatic - image - 3
Electric log splitter - CV 26 EK pro - PISEK - Vitli KRPAN d.o.o. - vertical / PTO-driven / automatic - image - 4
Electric log splitter - CV 26 EK pro - PISEK - Vitli KRPAN d.o.o. - vertical / PTO-driven / automatic - image - 5
Electric log splitter - CV 26 EK pro - PISEK - Vitli KRPAN d.o.o. - vertical / PTO-driven / automatic - image - 6
Add to favorites
Compare this product


Characteristics

Type
electric
Mounting
vertical
Other characteristics
PTO-driven, automatic

Description

Splitting Force:25 t Recommended Tractor Power:30 kW / 41 HP Standard equipment "2 Speed Automatic" valve with two automatic splitting speed levels, depending on operating load on the wedge/ Cast-iron pump, Integrated double-bottom tank containing a large volume of oil Tehnical features Drive Power:6,6 kW / 9 HP Splitting Force:25 t Piston Hub:970 mm Splitting Height:550/1100 mm Splitting Speed (S2- S1)-R*(s/1000mm):(6,5-12,4)-5,9 / (4,1-7,8)-3,7 Oil Flow:30 (1400) / 81 (540) min-1 Oil Quantity in Tank:45 l Recommended Tractor Power:30 kW / 41 HP Dimensions W×L×H×(Ht)**:805×1260×2850×(1850) mm Weight:524 kg Table with extension and lifting device plate:Optional Cast-Iron Pump:Standard Winch (750kg):Optional
