Hydraulic wood splitter CH 32 K
horizontaltractor-mounted

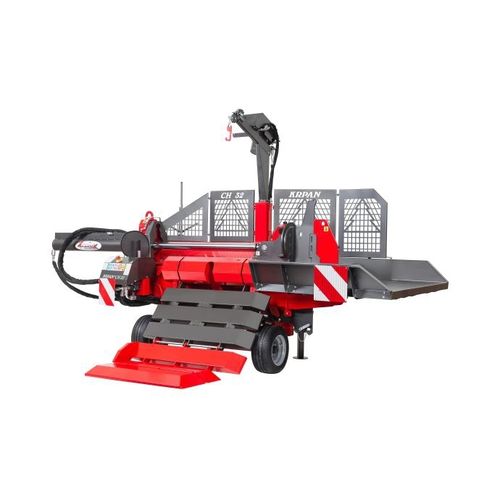

Hydraulic wood splitter - CH 32 K - PISEK - Vitli KRPAN d.o.o. - horizontal / tractor-mounted
Hydraulic wood splitter - CH 32 K - PISEK - Vitli KRPAN d.o.o. - horizontal / tractor-mounted
Hydraulic wood splitter - CH 32 K - PISEK - Vitli KRPAN d.o.o. - horizontal / tractor-mounted - image - 2
Hydraulic wood splitter - CH 32 K - PISEK - Vitli KRPAN d.o.o. - horizontal / tractor-mounted - image - 3
Hydraulic wood splitter - CH 32 K - PISEK - Vitli KRPAN d.o.o. - horizontal / tractor-mounted - image - 4
Hydraulic wood splitter - CH 32 K - PISEK - Vitli KRPAN d.o.o. - horizontal / tractor-mounted - image - 5
Hydraulic wood splitter - CH 32 K - PISEK - Vitli KRPAN d.o.o. - horizontal / tractor-mounted - image - 6
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Mounting
horizontal
Mobility
tractor-mounted

Description

Splitting Force:31 t Splitting Length:1260 mm Required Tractor Capacity:35 kW / 48 HP Standard equipment Tandem Cast Iron Pump - Hydraulics Group 3 Firewood Deposit Table (990 x 1925 mm) Chassis with Wheels and Towing Bar 2/4-Way Wedge Oil Cooler Large Oil Tank with 100 l Capacity Tehnical features Splitting Force:31 t Splitting Length:1260 mm Piston Stroke:1265 mm Max. Log Diameter:1000 mm 2 Automatic Splitting Speeds:Standard Hydraulic Lifting and Lowering of the Wedge:Standard Piston Advance Speed (Stage 1/ Stage 2):14/28 cm/s Piston Return Speed:28 cm/s Oil Quantity in Tank:100 l Required Tractor Capacity:35 kW / 48 HP 3 Point Linkage Category:II. L x W x H - Working Position:2500×4510×1815×2650 mm L × W × H - Transport Position:2000×2600×1815×2650 mm Weigth:1427 kg Firewood Deposit Table (990 x 1925 mm):Standard Firewood Deposit Table:Standard Oil Cooler:Standard 2/4 -Way Wedge:Standard 6 or 8 -Way Wedge:Optional Hydraulic Winch (750 kg) with Radio Remote PIC Minimal and Forceps:Optional Hour meter:Standard

VIDEO

Catalogs

No catalogs are available for this product.

See all of PISEK - Vitli KRPAN d.o.o.‘s catalogs
