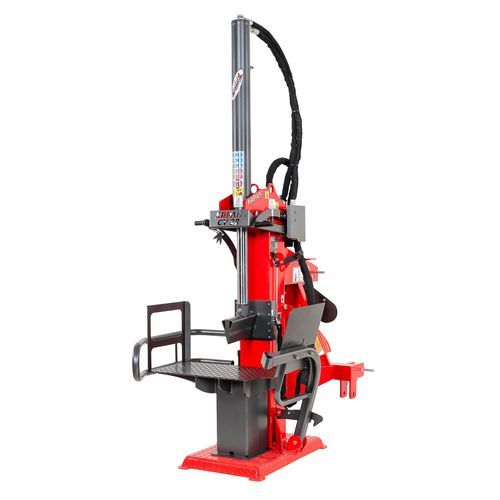

Vertical wood splitter CV 22 K pro
tractor-mountedPTO-driven

Vertical wood splitter - CV 22 K pro - PISEK - Vitli KRPAN d.o.o. - tractor-mounted / PTO-driven
Vertical wood splitter - CV 22 K pro - PISEK - Vitli KRPAN d.o.o. - tractor-mounted / PTO-driven
Vertical wood splitter - CV 22 K pro - PISEK - Vitli KRPAN d.o.o. - tractor-mounted / PTO-driven - image - 2
Vertical wood splitter - CV 22 K pro - PISEK - Vitli KRPAN d.o.o. - tractor-mounted / PTO-driven - image - 3
Vertical wood splitter - CV 22 K pro - PISEK - Vitli KRPAN d.o.o. - tractor-mounted / PTO-driven - image - 4
Vertical wood splitter - CV 22 K pro - PISEK - Vitli KRPAN d.o.o. - tractor-mounted / PTO-driven - image - 5
Vertical wood splitter - CV 22 K pro - PISEK - Vitli KRPAN d.o.o. - tractor-mounted / PTO-driven - image - 6
Add to favorites
Compare this product


Characteristics

Mounting
vertical
Mobility
tractor-mounted
Other characteristics
PTO-driven

Description

Splitting Force:21 t Recommended Tractor Power:27 kW / 37 HP Standard equipment "2 Speed Automatic" valve with two automatic splitting speed levels, depending on operating load on the wedge/ Cast-iron pump, Integrated double-bottom tank containing a large volume of oil Tehnical features Drive Power:/ Splitting Force:21 t Piston Hub:970 mm Splitting Height:550/1100 mm Splitting Speed (S2- S1)-R*(s/1000mm):(3,6-7,2)-3,6 Oil Flow:73 (540) min-1 Oil Quantity in Tank:40 l Recommended Tractor Power:27 kW / 37 HP Dimensions W×L×H×(Ht)**:805×1260×2850×(1850) mm Weight:457 kg Table with extension and lifting device plate:Optional Cast-Iron Pump:Standard Winch (750kg):Optional
