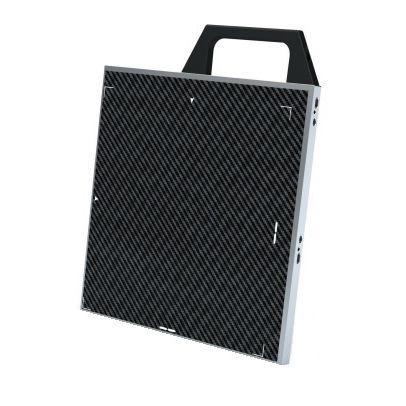

Veterinary radiography flat panel detector PIXX 2929N

12 x 12direct conversionwireless

Features i High Sensitive GOS 20% higher sensitivity compared to conventional GOS 16 bit Outstanding image quality and highest level of details in IP 67 rated Water résistant and Dust proof Long Battery Life 8hours with continuous operation environment Minimum Dead Space The thinnest Dead Space 2.5mm + 0.5mm, Two sides High Energy Range 40kV~450kV Mobile Vïewer Instant Viewer from any Personal mobile devices On-Board Storage On-board image storage up to 200 images Spécifications Application NDT, Security and EOD Sensor a-Si TFT array Fiat Panel Detector Conversion Screen GOS Active Area 12 x 12inch(287mmx 287mm) Pixel Pitch 140wn Sensor Pixel 2,048 x 2,048(4.2 M pixels! Image Data 16 bit Trigger Mode AED(Automatic Exposure Détection), Manual Trigger Calibration Mode ACC(Auto Calibration Control), Manual Calibration Data Transfer Time Less than 1 sec. Capture Cycle Time 3~5sec.|Approx.) Wired lnterface(Data Output) Gigabit Ethernet Voltage AC 100 ~ 240V, 50/60Hz Wireless Standard IEEE 802.11ac Battery Performance Approx. 8hours of continuous operation
