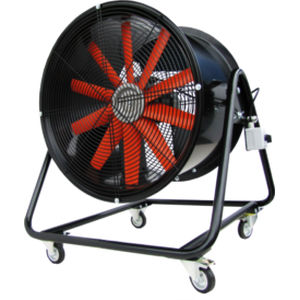

Farm building fan KLRD seriesfor air circulationportableaxial
Add to favorites
Compare this product
Characteristics
- Application
- farm building
- Function
- for air circulation
- Installation
- portable
- Other characteristic
- axial, panel
- Air volume
Max.: 30,400 m³/h
(1,073,565.9 ft³/h)Min.: 3,780 m³/h
(133,489.4 ft³/h)
Description
Fans equipped with two-speed motors, mounted on a roll-around, tilting frame. Protected with guard on both sides. The frame allows for adjusting the angle of the air stream produced by the fan. Fans designed for moving air and other chemically inert agents. They are designed with a particular em-phasis on achieving high flow parameters at low noise level.
Standard configuration:
Diameter range: 450 ÷ 800 mm
Airflow: 3780/7650 ÷ 16600/33200 m3/h
Used motors: 0,22/0,40 ÷ 0,90/3,60 kW
Operating temperature: -20 ÷ +55°C
Insulation class: F
Ingress protection: IP 55
Airflow direction: WS
