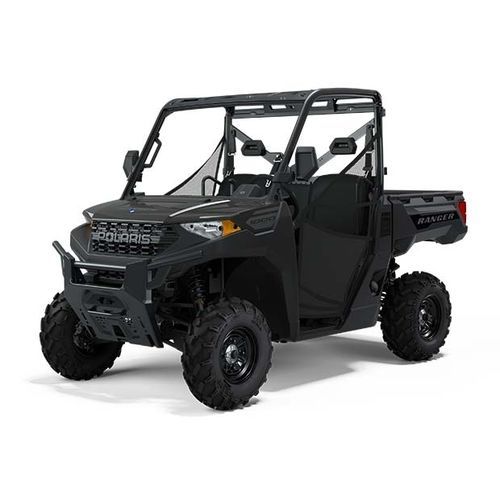

Get more value for your hard-earned dollar with the capability, comfort and durability of the RANGER 1000.
.ProStar 1000 Engine
.2,500 Lb. (1136 kg) Towing Capacity & 1,000 Lb. (454 kg) Box Capacity
.12" (30,5 cm) Ground Clearance
.26" Tires
.12" Stamped Steel Wheels
.Electronic Power Steering
ENGINE & DRIVETRAIN
ENGINE TYPE
4-Stroke Twin-Cylinder SOHC
FUEL SYSTEM
Electronic Fuel Injection
TRANSMISSION / FINAL DRIVE
Automatic PVT H / L / N / R / P; Shaft
DRIVE SYSTEM TYPE
Pro-Lock On-Demand AWD/2WD/VersaTrac Turf Mode
COOLING
Liquid
SUSPENSION / BRAKES / WHEELS
FRONT SUSPENSION
Dual A-Arm 25.4 cm (10") Travel
REAR SUSPENSION
Dual A-Arm IRS 25.4 cm (10") Travel
FRONT / REAR BRAKES
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
PARKING BRAKE
Hand-Actuated
FRONT TYRES
26 x 9-R12; PXT
REAR TYRES
26 x 11-R12; PXT
WHEELS
Steel
DIMENSIONS
BED BOX DIMENSIONS (L X W X H)
93 x 137 x 29 cm (36.61 x 54.93 x 11.41")
FRONT / REAR RACK OR BOX CAPACITY
N/A / 454 kg (1,000 lb)
FUEL CAPACITY
42.9 L (11.35 gal)
GROUND CLEARANCE
30,5 cm (12")
OVERALL VEHICLE SIZE (L X W X H)
305 x 158 x 193 cm (120 x 62.5 x 76")
PAYLOAD CAPACITY
EU : 738 kg (1,727 lb), Tractor : 598 kg (1,318 lb)
WHEELBASE
206 cm (81")
DRY WEIGHT
EU : 676,7 kg (1,491 lb); Tractor : 681,7 kg (1,502 lb)
FEATURES
CARGO SYSTEM
Lock & Ride®
ELECTRONIC POWER STEERING (EPS)
Equipped
HITCH TOWING RATING
1134 kg (2,500 lb)
HITCH/TYPE
EU : Receiver Only, Tractor : Standard 5 cm (2") Receiver
