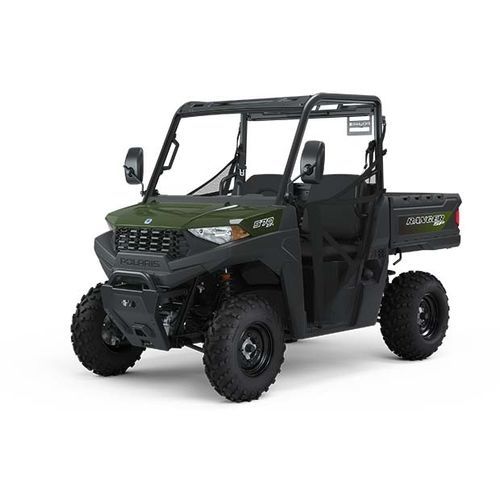

2WD side-by-side vehicle RANGER SP 570

2-personwith dump bed

.1,235 Lb. Towing Capacity .500 Lb. Gas-Assist Dump Box .10" Ground Clearance .9" Front / 10" (25,4 cm) Rear Suspension Travel .56" Width .500 Lb. Dump Box .25" Tires ENGINE & DRIVETRAIN ENGINE TYPE ProStar® 570, 4-Stroke Single-Cylinder FUEL SYSTEM Electronic Fuel Injection TRANSMISSION / FINAL DRIVE Automatic PVT H / L / N / R / P; Shaft DRIVE SYSTEM TYPE On-Demand True AWD / 2WD / VersaTrac Turf Mode ENGINE BRAKING SYSTEM Non Equipped COOLING Liquid SUSPENSION / BRAKES / WHEELS FRONT SUSPENSION MacPherson Strut 23 cm (9 in) Travel REAR SUSPENSION Dual A-Arm, IRS 26,8 cm (10,5") Travel FRONT / REAR BRAKES 4-Wheel Hydraulic Disc PARKING BRAKE Hand-Actuated FRONT TYRES 25 x 8-12; 489 REAR TYRES 25 x 11-12; 489 WHEELS Stamped Steel DIMENSIONS BED BOX DIMENSIONS (L X W X H) 83.82 x 122 x 30.5 cm (33.3 x 48.7 x 12.3 in) FRONT / REAR RACK OR BOX CAPACITY N/A / 227 kg (500 lb) FUEL CAPACITY 36 L (9.5 gal) GROUND CLEARANCE 25.8 cm (10") OVERALL VEHICLE SIZE (L X W X H) 279.8 x 144.5 x 186.8 cm (109.8 x 56.7 x 73.5") PAYLOAD CAPACITY 454 kg (1,000 lb) WHEELBASE 186 cm (73") DRY WEIGHT 548 kg (1,208 lb) FEATURES CARGO SYSTEM Lock & Ride® ELECTRONIC POWER STEERING (EPS) Not Equipped HITCH TOWING RATING 560 kg (1,235 lb) HITCH/TYPE Receiver Only INSTRUMENTATION Single Analog Dial with 2" LCD Rider Information Centre: • Speedometer • Tachometer • Odometer • Tripmeter • Clock • Hour Meter • Gear Indicator • Fuel Gauge • Coolant Temperature • Volt Meter • Service Indicator and Codes • Seatbelt Reminder Light • DC Outlet LIGHTING Halogen VARIANTS EU
