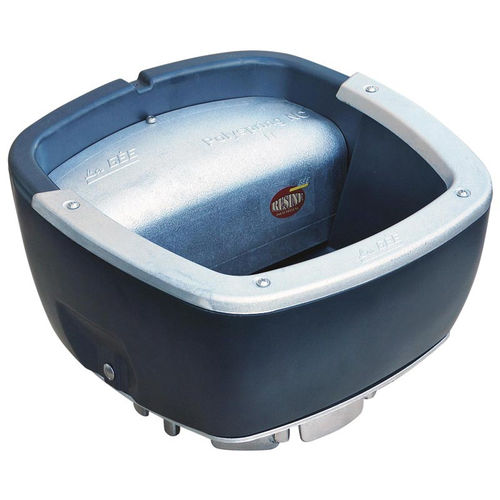

Sheep waterer POLYSPRING II

for goatsfor calvesfor horses

The non-heating POLYSPRING II constant level drinker is upgradeable via an optional heater kit. POLYSPRING drinkers are designed to be used in numerous configurations. Fitted with a constant level mechanism, they are designed with a wide double-walled, rotomolded polyethylene bowl. The heavy-duty bowl is suited to animal morphology. Their mechanism is protected by a high-quality cast aluminium housing. The mechanism is 15 liters/minute depending on the pressure. The constant level model works ideally with pressure of 3 to 4 bars maximum. The water supply connection fits direct in the THERMO COLUMN M and S since the 1/2" connection is under the bowl. They are fitted with: • 1 LA GEE 15 litres/minute green float valve tap with adjustment screw, • 1 water stop system; They feature a reinforced cast aluminium mounting plate that can be directly fastened above the column. The Polyspring bowl is factory fitted with a heavy-duty anti-spill cast aluminium rim for optimal use without spillage, thus keeping bedding material clean. For cleaning, it is fitted with a flexible 25 mm diameter drain plug, linked, via a pipe, to the bottom of the column. Delivered without column. Compatible with Thermo S600, S400, M and S PLUS columns. Material resin and cast aluminium Length 425 mm Width 437 mm Height 235 mm Pressure network System constant level Mechanism float valve tap Fastening column Device non-heating Flowrate 1 à 18 l/min Connection diameter 1/2" (15/21 mm) - female Packaging boxed Sales unit Unit Sales packaging unit Boxed. Float valve Pressure network en polyamide vert (P1138315)
