Drop-side trailer T663/4
tandem axleagricultural10 ton

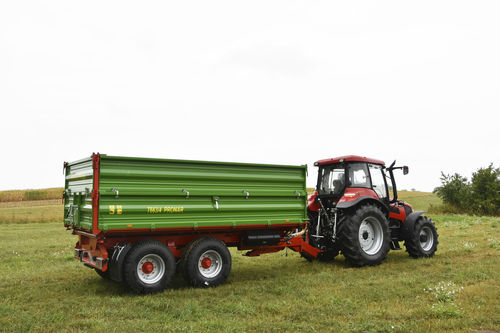

Drop-side trailer - T663/4 - Pronar Sp. z o.o. - tandem axle / agricultural / 10 ton
Drop-side trailer - T663/4 - Pronar Sp. z o.o. - tandem axle / agricultural / 10 ton
Drop-side trailer - T663/4 - Pronar Sp. z o.o. - tandem axle / agricultural / 10 ton - image - 2
Drop-side trailer - T663/4 - Pronar Sp. z o.o. - tandem axle / agricultural / 10 ton - image - 3
Add to favorites
Compare this product


Characteristics

Construction
drop-side
Number of axles
tandem axle
Application
agricultural
Payload
10 ton
Empty weight

3,580 kg
(7,892.5 lb)

Recommended power

67.6 ch
(67.6 hp)

Load volume

11.8 m³
(416.713 ft³)

Loading case lenght

4,440 mm
(174.8 in)

Loading case width

2,190 mm, 2,240 mm
(86.2 in, 88.2 in)

Loading case hight

1,185 mm
(46.7 in)

Description

Why would improve something that is good? Because the world is constantly changing, and the technical world even more rapidly. PRONAR T663/4 trailer was created as enhanced version of the T663/1. We have improved maneuvering characteristics of the trailer as well as its stability. A customer who chooses a PRONAR T663/4 can be sure that in comparison with the model T663/1 the trailer will have a larger capacity (up to 10420 kg),will be more stable (increased spacing , parabolic springs, extended frame bottom, increased wheelbase), a lower loading height – in standard option , loading height is lowered by 120 mm to 1185 mm). IMPROVED STABILITY Is ensured by extended frame, parabolic springs, increased wheelba. LOWER HEIGHT OF LOADING By lowering the trailer frame, the height of the trailer floor reduced by 120 mm relative to the a standard trailer T663/1. SIMPLE CONSTRUCTION Simple, but well designed and durable construction ensures long trouble-free use. SILO VERSION Trailer can be equipped with a hydraulic tailgate which in combination with additional sidewalls provides a loading volume of almost 16 m3. WIDE RANGE OF OPTIONAL ACCESSORIES The customer can order additional equipment, which increases the use of trailers.
