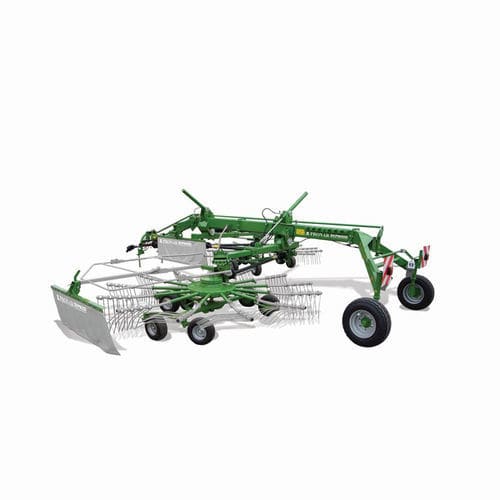

Rotary rake ZKP900D

side deliverybi-rotor

Double-rotor rake ZKP900D – was created to meet needs of farms with large grassland areas. Hydraulic regulation of working width varies from 7.1m to 9m, which results in high performance during raking. An important distinguish feature of machine is possibility to make one or two rollers ready to be picked up by baler or self-loading wagon. To not deform already made rollers, there is a possibility to lift the elements of the rake slightly above them without disconnecting rotor drivers, which makes work quicker. ZKP900D can be used with tractors with a power of not less than 80KM (59kW) and not lighter than 2.5t. Connection with a tractor is made through three-point suspension system I or II cat. The width after folding doesn’t exceed 3m. Raking as required Hydraulically extending telescopic arms allows to rake grass into one or two rollers with width from 0.6 to 1.9m Smooth work on any ground Adjustable raking depth helps to set the optimum raking on varying soil hardness. Easy to maneuver in transport Dedicated hydraulic system allows the rotors to be smoothly folded into its transport position. The steering system is designed to make maneuvering on narrow and winding roads easier.
