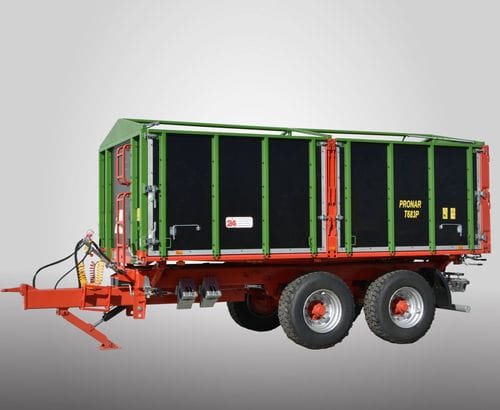

Tipping trailer T683P
2-axleagricultural10 t ... 20 t

tipping trailer
tipping trailer
Add to favorites
Compare this product


Characteristics

Construction
tipping
Number of axles
2-axle
Application
agricultural
Payload
10 t ... 20 t
Brake system
with pneumatic braking
Other characteristic
3-way
Empty weight

4,640 kg
(10,229.4 lb)

Recommended power

104 ch
(104 hp)

Load volume

17.3 m³
(610.944 ft³)

Loading case lenght

5,100 mm
(200.8 in)

Loading case width

2,420 mm
(95.3 in)

Loading case hight

1,350 mm
(53.1 in)

Description

Trailer PRONAR T683P is based on chassis of the trailer PRONAR T683. In addiction to the basic advantages of the tandem trailer T683, the walls of this one are made of special durable waterproof plywood, embedded in special aluminium profiles, which are also used to embed the rubber seals ton ensure the highest degree of integrity. The use of this type of materials reduces the risk of damage of the transported argicultural products because of the low temperature. The loading and unloading of pallets is possible thanks to the portal doors opened like gates. Such a solution makes it easy for loading with forklift without the danger of damaging the sides of the trailer. 1-GUARANTEES A CONSTANT TEMPERATURE OF THE LOADING Thanks to the used plywood the box of the trailer is resistant to the frost. 2-DURABLE Components of walls, chassis and body of trailers are made with thicker sheet than the competitors, use of the modern coating increases the durability. 3-RICH STANDARD EQUIPMENT In standard electrical installation, crank hand brake, supporting wedges, pneumatic brake system. 4-EASY TO MANEUVER Easy maneuvering the trailer by using the suspension of tandem type. 5-POSSIBILITY OF VARIOUS APPLICATIONS For the transport of potatoes, beets and other root products, loose or on pallets.
