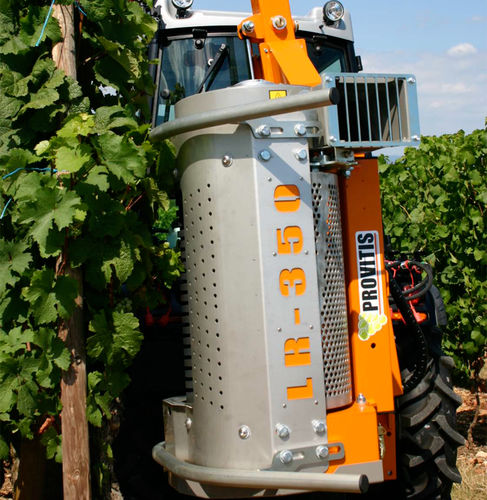

Sickle bar leaf remover LR 350

pull strippertractor-mountedsingle

The operation - Drum with openings in which a suction outlet with a turbine is installed. The depressurisation caused by the turbine forces the leaves to get stuck on the drum that is driven in rotation. The leaves are then taken to a roller placed against the drum. Gripped between the roller and the drum, the leaves are torn off. Beyond the roller and the suction zone, the leaves fall on the ground. - Working heigt 480 mm. - The leaf stripping head is mounted on a parallelogram frame ensuring that the plane of vegetation is followed. - The turbines and the roller are driven by hydraulic motors. - The leaf stripper LR 350 may be adapted to any type of carrier, vineyard tractor, high clearance tractor or even grape harvesting machine. The advantages - The entire leaves torn off do not pass into the turbine and therefore, they are not crushed and sprayed into the neighbouring rows. - Since the work plane is followed thanks to the parallelogram, the leaf stripping is uniform and without force on the tying or the grapes - Simple machine of reduced weight and dimensions, requiring low maintenance.
