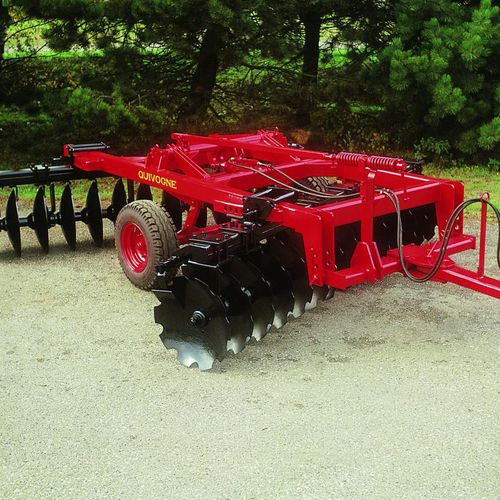

Towed disc harrow AP series

2-sectionwith hydraulic adjustmentoffset

The AP is a self-supporting "V" disc-harrow with standard frame. Engineered with the whole know-how of Quivogne, this tool has got excellent reliability and strength. TECHNICAL SPECIFICATIONS Twin-bar frame 150x100x8. Disc gangs in tube 160x 120x8. 2 wheels 10x15 - 10 ply, reinforced rims. Axle square 60, 6 axles. Shafts in square 40 in high-strength steel. Steel bearings with triple waterproof conical bearings (weight : 21 kg). Opening adjustment of disc gangs by sector. Lifting cylinder with working depth adjustment through hydraulic depth stop (2 lifting cylinders for AP with 36 discs). Traffic lights and signalling devices. UTILISATION Through the combination of jagged and smooth discs the light disc harrow APL is ideal for stubble cultivation under normal soil conditions. The disc spacing of 230 mm and special scrapers ensure blockage free working even with a large amount of residues. Excellent deep mixing tillage through the V-shaped arrangement of the disc sections.
