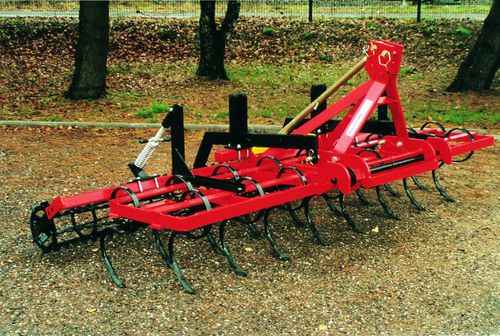

Mounted field cultivator COMPAK DRILL series

with rollerfixedspring tine

Reduce your costs, and increase your chances of sowing successfully! Obtain a perfect seedbed while reducing the number of passes- it is possible using our seed bed preparation cultivators that are equipped with a rear drill carrying linkage. A symbol of strength and reliability these implements have a twin beam frame, two rows (three as an option) of straight tines (32x10) and the linkage that can receive all types of drills. It can also have our different models of following harrows and rollers added to it, and it is available in 2. 50m, 3m and 4m working widths. TECHNICAL SPECIFICATIONS Vibrosemoir: frame with dual steel tine bars 60x12. Mechanical drill linkage adaptable for all seed drills. Spring tines 32x10, clearance 400mm. Automatic hitch. Marker panels and road lighting kit depending on width. Multisem: Twin beam square steel frame 80x80x6, 2 tine carrying bars 60x12. Straight tines 32x10 clearance 400mm. Marker panels and road lighting kit depending on width. Double clevis hitch or automatic hitch (specify when placing order). Compakdrill: Square tube frame 80x80x6. 3 rows of straight tines 32x10, clearance 400mm. tine carrying bar 60x12. Compact frame in order to reduce rear overhang to a minimum. Clevis hitch. Marker panels and road lighting kit depending on width.
