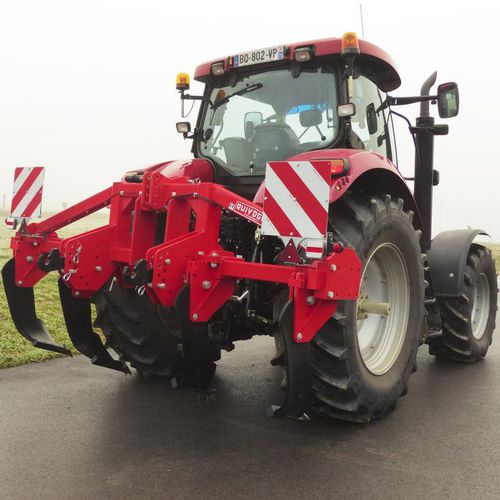

4-shank subsoiler SCD series

6-shank3-point hitch

The Quivogne SCD, 100 % compatible with all your tools. With rear linkage Frame in tube 200x100x10 Curved tines with shear bolts Limited travel of tines on the back to protect the tools. Under-beam clearance 900 mm Delivered with traffic lights and signalling devices. TECHNICAL SPECIFICATIONS Frame in tube 200x100x10. Left and right curved tines in high-strength steel and safety shear bolts. Under-beam clearance : 900 mm. Limited travel of tines on the back to protect the rear tools. Linkage coupling n°2 and n°3. Rear linkage - safety bracket. Traffic lights and signalling devices. IT REQUIRES A LONG CARDAN SHAFT TO MOUNT A ROTARY HARROW at the back. UTILISATION The subsoiler SCD with a straight frame and inward curved tines ensures optimal soil loosening in up to 60 cm working depth. Matchless: Combination with other tillage implements, eg. DISKATOR 3 m, for a more effective workflow. The optional trailing rollers ensure optimal crumbling and reconsolidation of the soil.
