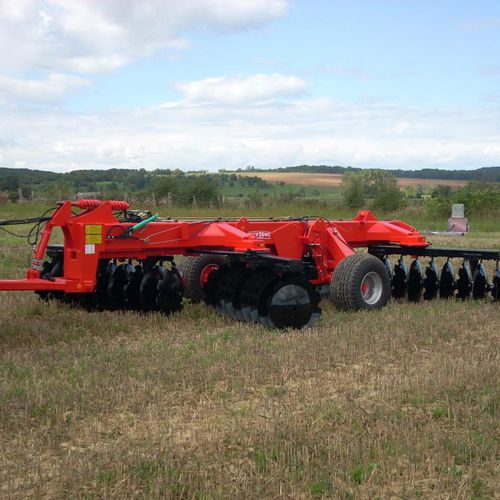

Towed disc harrow MONODISC X series

2-sectionwith hydraulic adjustmentoffset

Disc-harrow in "X" with single beam, modern and efficient. Self-supporting single-beam disc-harrow in "X". Available from 28 to 48 discs, it is a very interesting machine for medium-sized cultures, for companies searching for a modern and efficient machine. Simultaneous opening of disc gangs from the tractor cab, scaling tool to visualize the disc gangs opening, working depth adjustment through mechanical depth stop. Approved by the DRIRE, it can be driven legally on the roads. TECHNICAL SPECIFICATIONS Oversized single-beam central frame 300x300x10. Disc gangs in rectangular tube 160x120x8 with simultaneous opening of disc gangs from the tractor cab, scaling tool to visualize the disc gangs opening, disc gangs mounted on triple waterproof conical bearings (weight : 21kg) - machine-welded reinforced brackets for bearings - shafts square 40, 2 oustridgers, notched discs at the front, smooth at the rear or alternated, less curved patented discs Ø610 or Ø660 at the attack to limit projections. 2 wheels 295/60-22,5 with reinforced rims - single axle square 80, 6 axles. Drawbar with springs and self-compensating system, 2 lifting hydraulic cylinders with adjustment through depth stop.Transport width lower than 3,00m. UTILISATION Through the combination of jagged and smooth discs the MONODISC-X is ideal for stubble cultivation under normal and heavy soil conditions. The disc spacing of 230 - 260 mm and special scrapers ensure blockage free working even with a large amount of residues. Excellent coverage of the working area through MONODISC-X X-shaped, shifted arranged disc sections.
