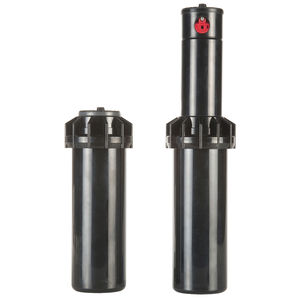

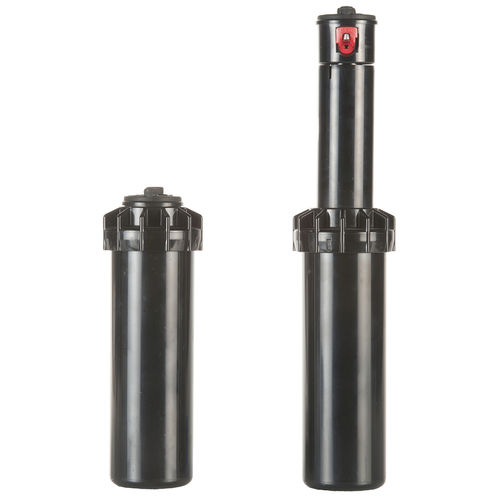

Rotating sprinkler S050 series

Rain S050 is gear-driven, rotary type sprinklers, capable of covering an area of 5.2 to 9.1 m radius at nozzle pressure of 2.1 to 3.4 bar with a discharge rate of 2.84 to 12.5 LPM. They are perfect for small lawn and landscape areas and for replacing fi xed sprays. Rain S050 is supplied with five numerically coded interchangeable nozzles. Sprinklers nozzle trajectory are 26°. The sprinklers have a stainless steel radius adjustment screw. Rain S050 and S050 S provide arc adjustment from 40° to 360°. FEATURES AND BENEFITS Right position start – rotor rotates counterclockwise from fixed right start position Rubber cover – seals out dirt and increases product durability Time proven patented reversing mechanism – Assures continuous reverse and return…over a 20 year history Ratcheting riser – allows for easy adjustment of your starting position with a simple turn of the riser Wide selection of nozzles – provides fl exibility in system design Optional check valve – prevents low head drainage SPECIFICATIONS Inlet: 1/2” Arc Adjustment Range: 40°- 360° Flow Range: 2,8 - 12,5 l/m Operating pressure: 1,4 - 5,0 Bar Precipitation Rate: 0,5 to 1 cm per Hour (Depending on Spacing and nozzle Used) Overall Height: 15,2 cm Recommended Spacing: 5,2 to 8,5 m Radius: 5,5 to 10.7 m Nozzle Trajectory: 26° Riser Height: 10,2 cm
