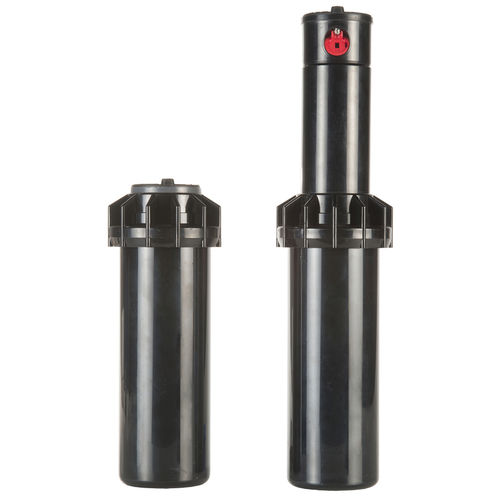

Rotating sprinkler S075 D

Rain S075 is the first Rain s.p.a. gear driven sprinkler. Is designed for basic residential and light commercial application and is ideal for low flow applications. Rain S075 rotates counter clockwise from fixed right start position and has an easy top adjustment procedure. The arc range that is from 40° to 360° provides a full range of adjustment. Rain S075 is capable of covering an area from 6,7 m to 15,5 m and is supplied with a wide selection of nozzles (8 standard with 25° nozzle trajectory and 4 low angle with 11° nozzle trajectory) in order to offer maximum flexibility to irrigation system design. Its special wiper seal reduces leaks caused by debris trapped under seal.v FEATURES END BENEFITS Inlet: 3/4” Arc Adjustment Range: 40° to 360° Flow Range: 4.2 - 26.7 l/m Operating pressure: 2,0 - 5,0 Bar Precipitation Rate: 0,3 to 2,9 cm per Hour Overall Height: 18,7 cm Recommended Spacing: 7,6 to 13,7 m Radius: 9.4 to 14.3 m Nozzle Trajectory: 25° Low Angle Nozzle Trajectory: 11° 8 standard and 4 Low Angle Nozzle Included Riser Height: 10,2 cm
