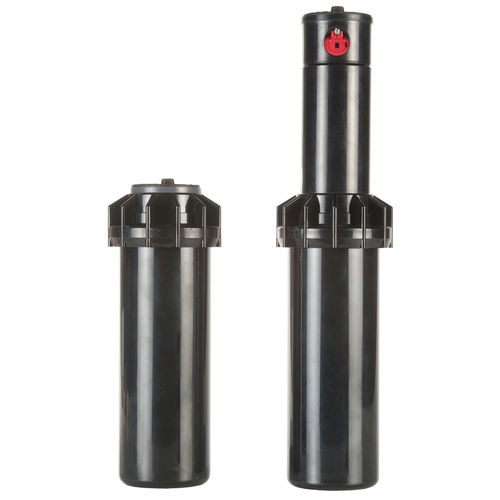

Rotating sprinkler S075 S

The S075 S Rotor with its patented flow control allows you to reduce the distance and flow rate proportionately for even water fall out and better zone performance. When turned off completely the riser stays popped up for quick nozzle changes or adjustments. The S075 S is packed with innovative features: Partial to continuous 360° coverage, an interchangeable nozzle for superior spray patterns, patented Easy Arc Set and Arc Memory Clutch, which returns the rotor to its preset position automatically. FEATURES AND BENEFITS Left position start – rotor rotates clockwise from fixed lEft start position Patented Arc Set Degree arkings–Clearly indicates the current watering pattern and simplifi es arc set adjustment Time proven patented reversing mechanism – Assures continuous reverse and return…over a 20 year history Ratcheting riser – allows for easy adjustment of your starting position with a simple turn of the riser Wide selection of nozzles – provides fl exibility in system design Optional check valve – prevents low head drainage SPECIFICATIONS Inlet: 3/4” F Arc Adjustment Range: 40° to 360° Flow Range: 1,9 - 53,4 l/m Operating pressure: 2,0 - 5,0 Bar Precipitation Rate: 0,3 to 2,9 cm per Hour Overall Height: 18,7 cm Recommended Spacing: 7,6 to 13,7 m Radius: 6,7 to 15,5 m Nozzle Trajectory: 25° Low Angle Nozzle Trajectory: 11° 8 standard and 4 Low Angle Nozzle Included Riser Height: 10,2 cm
