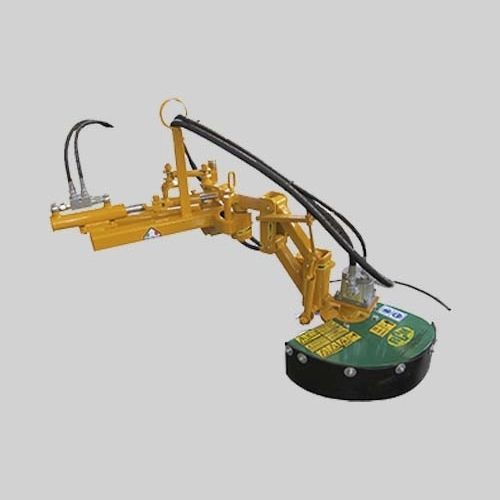

Agricultural rotary cutter RIT1

rear-mountintercep

The trimmer is a practical and rapid machine. It can be applied to every shredder model. It eliminates infesting grasses, which grow between vine and vine or amongst fruit trees, effectively and in a short time. The cut is carried out by 24 nylon whips (increasable to 42) fixed by a head activated by a hydraulic engine. The machine can move horizontally due to a feeler pin which, at the same time, lets the cutting head go back immediately when comes into contact with the stump. The operator can control the sensitivity of the feeler pin working on a piston that regulates the tension of a spring. The head works on contact with the soil and its vertical swing is supported by an articulated parallelogram, set by a damping spring which allows to work in areas with irregular soil.
