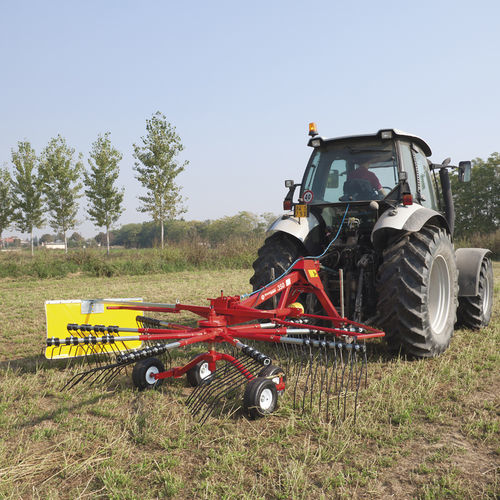

Rotary rake 350/9TR

side deliverysingle-rotor

Rotary rake that can be vertically positioned for the transportation on public road. For transportation it is hydraulically turned in vertical position: this operation is guided from the driver’s seat. In this way it is possible to lead all operations (from raking to moving on the street) without leaving the cabin and without removing any arm with considerable time saving. This rake is mounted to the rear lifter of the tractor and has a steering frame; it is acted by the power take-off and has one oil-lubed and height adjustable rotor with 9 strong zinc-plated arms with a special profile (like a cardan shaft) on which 4 special steel C85 teeth with double slope shape are mounted. It can work width two different width: 3.50 m and 3.30 m depending on the quantity of product to be raked in the field so that the user can always obtain windrows with optimal dimensions. It has 4 Balloons wheels 15×6.00-6 mounted on a tandem chassy, a mechanical rotation safety locking device for road transportation and a cardan shaft with clutch. TECHNICAL SPECIFICATIONS Rotor diameter:3.12 m / 2.84 m Minimum transport width:1.50 m arms:9 Tines for each arm:4 Wheels:4 Balloons wheels 15×6.00-6 Weight:397 kg ACCESSORIES .Special three point pivot .Adjustable tandem axle .Three point extension to increase lifting .3 point chain .Sensing front Balloon wheel adjustable in height with special pivot or chain
