Rotary rake 420/11TR

side deliverysingle-rotor

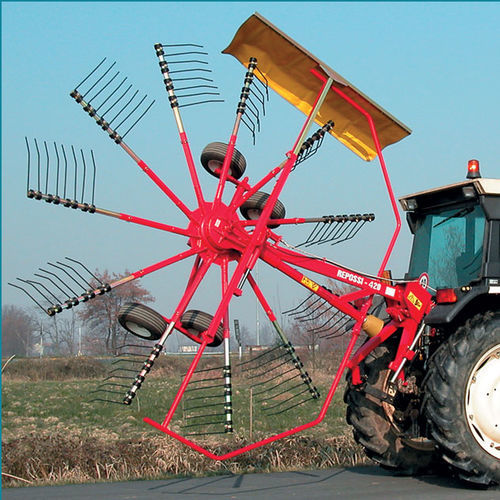

Rotary rake that can be vertically positioned for the transportation on public road. For transportation it is hydraulically turned in vertical position: this operation is guided from the driver’s seat. In this way it is possible to lead all operations (from raking to moving on the street) without leaving the cabin and without removing any arm with considerable time saving. This rake is mounted to the rear lifter of the tractor and has a steering frame; it is acted by the power take-off and has one oil-lubed and height adjustable rotor with 11 strong zinc-plated arms with a special profile (like a cardan shaft) on which 4 special steel C85 teeth with double slope shape are mounted. It can work width three different width: 4.20 m, 4.00 m and 3.80 m depending on the quantity of product to be raked in the field so that the user can always obtain windrows with optimal dimensions. It has 4 Balloons wheels 16×6.50-8 mounted on a tandem chassy, a mechanical rotation safety locking device for road transportation, a cardan shaft with clutch and an hydraulic three point lifter. TECHNICAL SPECIFICATIONS Rotor diameter:3.46 m / 3.33 m / 3.20 m Minimum transport width:1.80 m arms:11 Tines for each arm:4 Wheels:4 tandem wheels 16×6.50-8 Weight:510 kg ACCESSORIES .Special three point pivot .Adjustable tandem axle .3 point chain .Three point extension to increase lifting .Sensing front Balloon wheel adjustable in height with special pivot or chain .Special three point pivot
