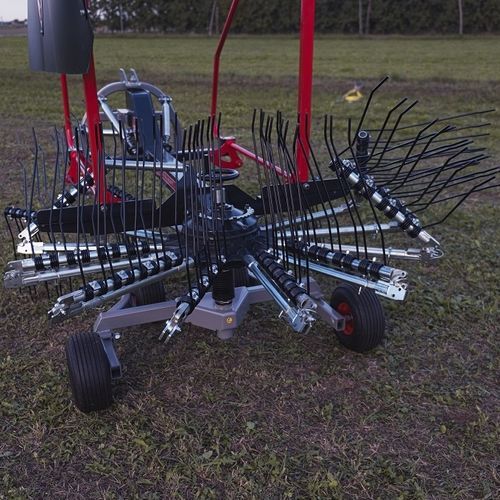

Rotary rake Gaura 360

side delivery

The Gaura 360 rotary are reliable and robust machines, designed to collect forage in precise swaths even in the most difficult conditions of use. The efficient and innovative solutions by Terra Implements (Damilano Group) enable to have uniform swaths with the product fluffed to reduce the internal humidity and obtain optimal aeration. The main advantages are high productivity in a short time, clean harvest without stones or topsoil, precise job with no waste of forage, even in adverse conditions, and finally the formation of swaths optimized for the next harvesting needs. Technical Data No. Arms for Rotors:11 No. Teeth per Arm:4 Weight:560 Width in Transport Position:2.40 Requested Power:20 Max. Speed of PTO Shaft:540 No. Wheels:4 Tires:15”X6,00-6T-510 Tandem:Standard Third Point Hitching:Articulated / II Cat. Lenght in Transport:2.80 Diameter:45568 Storage Height:2.15 Cam Adjustement:NO Technical Data 3D System A plate with a special slot and a ball joint that allows the machine to track the ground with freedom of movement in three directions. Transmission gearbox Cast iron transmission gearbox in oil bath. Upper handwheel for working height adjustment. Profile Teeth for Rapid Processing 360 Teeth with anti-wear treatment by shot peening. Special profiling for faster processing, better swaths, and forage with no soil impurities. Curved Tandem and Swing Limiter Geometry designed to allow the optimal ground wheel tracking, leaving more space for the teeth to collect the product. PVC Swath Former Swath former in durable semi-rigid PVC to ensure precise guidance of the product and low maintenance.
