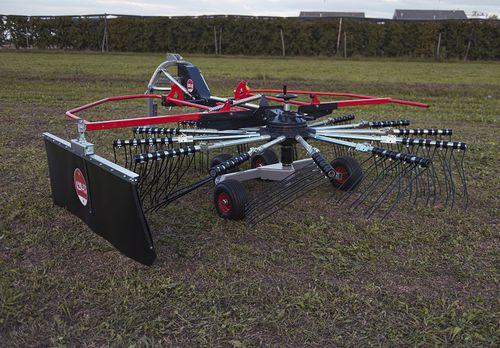

Rotary rake Gaura 420

side delivery

The Gaura 420 rotary rakes are reliable and robust machines, designed to collect forage in precise swaths even in the most difficult conditions of use. The efficient and innovative solutions by Terra Implements (Damilano Group) enable to have uniform swaths with the product fluffed to reduce the internal humidity and obtain optimal aeration. The main advantages are high productivity in a short time, clean harvest without stones or topsoil, precise job with no waste of forage, even in adverse conditions, and finally the formation of swaths optimized for the next harvesting needs. Technical Data No. Arms for Rotors:11/13 No. Teeth per Arm:4 Weight:525 kg Width in Transport Position:2.50 Folding Arms Requested Power:25 Max. Speed of PTO Shaft:540 No. Wheels:4 Tires:15”X6,00-6T-510 Tandem:Standard Third Point Hitching:Articulated/ II Cat Lenght in Transport:3.20 Diameter:3.40 / 3.80 max Storage Height:2.20 Cam Adjustement:YES Technical Data Telescoping Arm 420 Extendible galvanized arm to adjust the working width according to the type of forage and quantity. 3D System A plate with a special slot and a ball joint that allows the machine to track the ground with freedom of movement in three directions. Transmission gearbox Cast iron transmission gearbox in oil bath. Upper handwheel for working height adjustment. Profile Teeth for Rapid Processing 420 Teeth with anti-wear treatment by shot peening. Special profiling for faster processing, better swaths, and forage with no soil impurities. Curved Tandem and Swing Limiter Geometry designed to allow the optimal wheel tracking of the ground, leaving more space for the teeth to collect the product.
