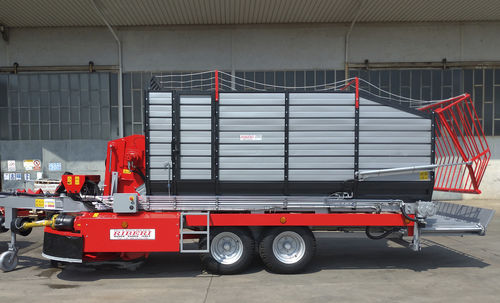

Loader wagon RS 65 SB

2-axleforageself-unloading

The Self-Loading Cutter Wagon RS 65 SB is hydraulically driven and equipped with a retractable cross conveyor for the side unloading. This conveyor can be controlled both from the driver’s seat and from the rear of the machine. Technical Features STRUCTURE • Robust frame and drawbar in high strength steel (S355) with special attention paid to thickness, tubular section, and welds. • FEM simulations to verify the structural tightness of each single component of the machine. • A segmented double bogie axle system is standard. The independent oscillation on both sides minimizes the stresses on the frame. • Mower on independent frame that allows free oscillation. MOWER • Two-drum cutter bar with helical gear transmission that transmits more power, reducing consumption and noise. • High resistance steel discs. • Hydraulic lightening system (on request), which drastically reduces mechanical stress on the mower / elevator unit, increases the life of the machine and provides a dynamic response to the roughness of the ground. • Perfectly shaped collector plate which, thanks to the turbulence of the drums, conveys the forage directly into the loading elevator. The product never touches the ground and remains clean. LOADING SYSTEM • Loading elevator with two chains equipped with forks that transport the product without damaging it. • The elevator is hydraulically driven. It can mount a certain number of knives to cut the forage and make unloading easier. UNLOADING SYSTEM • Hydraulically driven chain conveyor sliding under the loading platform. • Two unloading solutions: sidewards via retractable cross conveyor or by using the simple hydraulic tailgate.
