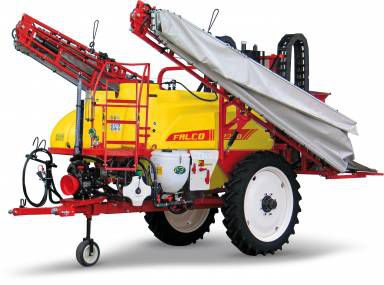

Towed sprayer FALCO BDL AIR

hydraulicfolding armsair-assisted

CURRENT TECHNICAL FEATURES: PAINTED STEEL FRAME ● POLYETHYLENE MAIN TANK, SYSTEM WASHING KIT AND HANDWASHING KIT ● DRY GRADUATED LEVEL GAUGE ● LOW PRESSURE PUMP ● Ø13mm 5 WAYS ELECTRICAL PROPORTIONAL CONTROL UNIT (BOOMS FROM 15 TO 21 M) ● Ø19mm 7 WAYS ELECTRICAL PROPORTIONAL CONTROL UNIT (24 M BOOM) ● SUCTION FILTER ● COMPACT AND ERGONOMIC VALVES WITH QUICK COUPLING FOR TANK FILLING UNIT HOSE ● TANK AGITATION SYSTEM THROUGH WATER TANK RETURN ● BREAKWATER BULKHEAD INTO THE MAIN TANK ● 35LT MIXER WITH SPRING-ASSISTED MOBILE SUPPORT ● TANK INSIDE WASHING KIT ● SYSTEM WASHING KIT WITH NON-RETURN VALVE ● VARIABLE TRACK AXLE (1400-1800MM, 1800-2100MM REVERSING WHEEL CENTRE, WITH STANDARD HUBS AND WHEELS) ● LADDER WITH PLATFORM ● TRACKING DRAWBAR HITCHED TO THE TRACTOR ELEVATOR ARMS ● 230/95-36 (9,5-36) WHEELS, 8 HOLE HUBS ● 1200MM STROKE HYDRAULIC HEIGHT ADJUSTMENT, WITH QUICK COUPLING (1 SINGLE- ACTING TRACTOR CONTROL) ● SELF-LEVELLING DEVICE WITH AUTOMATIC LOCKING ● HYDRAULIC SIDE FOLDING BOOM , WITH “AIR ASSISTED” ● HYDRAULIC HOSES AND 2 FUNCTIONS SWITCH KIT :1ST - 2ND ARMS (1 DOUBLE-ACTING TRACTOR CONTROL) ● ELECTRIC CONTROL UNIT WITH REV. COUNTER FOR AIRASSISTED FAN REVOLUTION REGULATION ● HYDRAULIC SYSTEM WITH GEAR PUMP ● QUICK COUPLING TYPE TRIJET, FAN 02-04-06 NOZZLES (KEMATAL) ● PROTECTION KIT FOR END JETS ● JUG FOR NOZZLES CHECK ● SPRING END BOOM PROTECTION KIT ● JUG FOR NOZZLES CHECK
