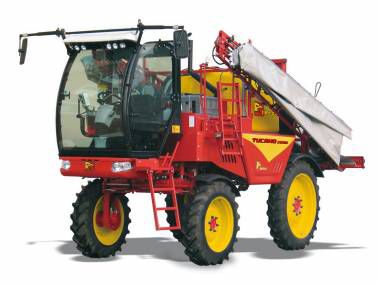

Self-propelled sprayer TUCANO 1J

hydraulicfolding armswith diaphragm pump

CURRENT TECHNICAL FEATURES: ● DEUTZ STAGE V 4 CYLINDERS ENGINE. RATED POWER: 105 KW (142 HP) AT 2200 RPM. (3A OPTIONAL) ● HYDROSTATIC TRANSMISSION FOR TWO FORWARD SPEEDS 0-17 km/h 0-40 km/h WITH MS05 MOTORS ON FRONT WHEELS AND MS08 ON REAR WHEELS AND PUMP 100 ● FOUR WHEELS HYDRAULIC STEERING SYSTEM ● GROUND CLEARANCE 1000 mm ● NEGATIVE BRAKES ON REAR WHEELS ● HYDROPNEUMATIC SHOCK ABSORBERS ON FRONT AXLE ● POLYETHYLENE TANK ● HYDRAULIC ANTISKID SYSTEM ● ROPS CAB WITH AIR CONDITIONING WITH ACTIVE CARBON FILTER, PNEUMATIC SEAT AND PASSENGER SEAT (EN 15695-1 CAT.4) ● STEREO SYSTEM WITH CD PLAYER ● SYSTEM WASHING KIT WITH ELECTRICAL CONTROLS ON THE CAB ● HYDRAULIC FOLDING BOOM ● TRIJET JETS WITH 02 POLYMER AIR INDUCTION AND XR04-06VK CERAMIC NOZZLES ● PARALLELOGRAM HYDRAULIC BOOM HEIGHT ADJUSTMENT, STROKE 1500mm ● HYDRAULIC SELF-LEVELLING DEVICE WITH CONNECTING RODS ● ELECTROHYDRAULIC BOOM CONTROL WITH 24 FUNCTIONS JOYSTICK ● "B" Touch 800 (8" TOUCH SCREEN) SPRAYCOMPUTER ● Ø13mm 5 WAYS ELECTRICAL PROPORTIONAL CONTROL UNIT (BOOMS 12/16 M) ● Ø19mm 5 WAYS ELECTRICAL PROPORTIONAL CONTROL UNIT (BOOMS 18/21 M) ● Ø19mm 7 WAYS ELECTRICAL PROPORTIONAL CONTROL UNIT (BOOMS 24 M) ● 35lt MIXER ● CLEAR WATER TANK WITH SYSTEM CLEANING DEVICE ● 250lt/min DIAPHRAGM PUMP FOR SPRAYING AND AGITATION ● INDICATOR KIT FOR DIAPHRAGM DAMAGE AND OIL LEAKAGE ● QUICK COUPLING FOR TANK FILLING HOSE ● REAR WHEELS 230/95 R40 FRONT WHEELS 230/95 R32 ● MANUALLY ADJUSTABLE TRACK – 2 FIXED POSITIONS: 1420mm - 1820mm (ONLY WITH WHEELS MAXIMUM WIDTH 270) ● FIXED TRACK, DIFFERENT FROM STANDARD, WITH WHEELS 320mm WIDE AT LEAST ● HYDRAULIC LADDER. ● MUDGUARDS
