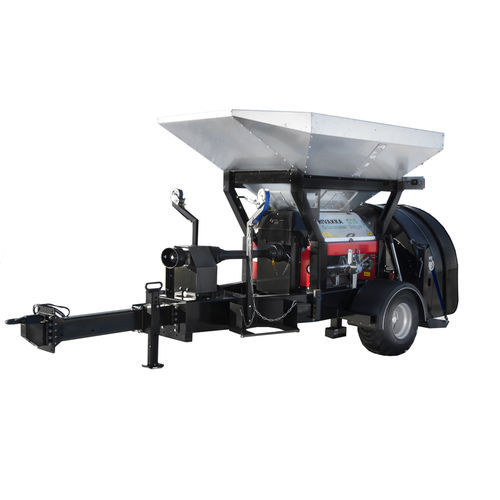

Grain grinding mill Greenmaker G10

for animal feedrollermobile

Easy to operate and serice points are easily check daily. The mill’s serrated-edged, hardened rollers efficiently pull grain inside and thoroughly crush even the smallest grains. The spacing of the rollers can be adjusted quickly with a stepless adjusting nut and locked in place with a lever. This keeps the roller gap always same unlike spirng loaded or hydraulic jack versions. If something too big for the rollers passes through, the rollers are protected from damage by a quickly replaceable shear bolt. The stainless steel discharge funnel diameter ø220mm and bag diameter 2 meters. Utilize the advantages of wet preservation at times of high oil prices. Max crimping dry* 60 000 kg/hour Max crimping wet* 40 000 kg/hour Power requirement 200 hp Length of rollers 1 000mm Diameter of rollers ø350mm Power to rollers Gear Drive Hopper volume 3 200 litre ( 3.2m³) Length 5880 mm Width 2318 mm Height in transit 2605 mm Bag diameter 2 meter Weight 3 100 kg *Maize
