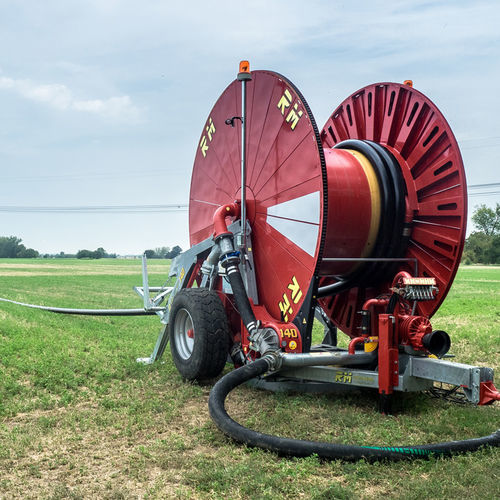

Irrigation hose reel 900 xj EVO

turbine-drivetowed

• Flow-distributor turbine with built-in by-pass. • 4-speed gearbox with shafts completely in oil bath. • PTO for fast hose rewinding. • Braking system to unwind the hose with fully automatic operation. • Automatic speed compensator according to the hose winding diameter. • Anti-slackening hose safety device. • Safety device to stop the machine if the hose winds unevenly. • Electronic hose rewinding speed measuring device. • Digital clock. • Worm screw hose turning system with micrometric regulation and double guide. • Reel support on ball bearings and lipped retention ring with stainless steel bushing. • Frame swivelling on a ball bearing centre plate through 360°. • Automatic trolley lifting at the end of sprinkling by means of VertiLift™ system. • Hydraulically controlled rear anchoring brackets, independent on both sides. • Bar base hydraulically controlled through spool valve. • Flexible rubber hose to supply the machine, complete with connections. • Adjustable trolley track and wheel height. • SIME sprinkler with slow return and set of nozzles • Pressure-gauge in glycerine bath on the machine. • Pressure-gauge in glycerine bath on the sprinkler (SIME). • Ball joint on sprinkler trolley. • Sprinkler trolley ballasts. • Adjustable bar eye. • Hot-dip galvanized structure (painted reel). • Six-lever spool valve on swivelling arm • Water inlet on both sides. • Hydraulic rotation of bearing centre plate with six levers
