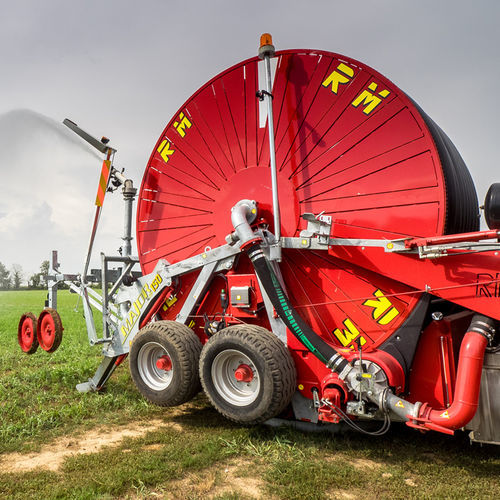

Irrigation hose reel MAJOR Xjm

turbine-drivewith pumping system

•Flow-distributor turbine with built-in by-pass. •4-speed gearbox with shafts completely in oil bath. •PTO for fast hose rewinding. •Braking system to unwind the hose with fully automatic operation. •Automatic speed compensator according to the hose winding diameter. •Anti-slackening hose safety device. •Safety device to stop the machine if the hose winds unevenly. •Electronic hose rewinding speed measuring device. •Digital clock. •Worm screw hose turning system with micrometric regulation and double guide. •Reel support on ball bearings and lipped retention ring with stainless steel bushing. •Frame swivelling on a ball bearing centre plate through 360°. •Automatic trolley lifting at the end of sprinkling by means of VertiLift™ system. •Hydraulically controlled rear anchoring brackets, independent on both sides. •Bar base hydraulically controlled through spool valve. •Two-wheeled cast iron sprinkler trolley. •Adjustable trolley track and wheel height. •SIME sprinkler with slow return and set of nozzles •Pressure-gauge in glycerine bath on the machine. •Pressure-gauge in glycerine bath on the sprinkler (SIME). •Ball joint on sprinkler trolley. •Sprinkler trolley ballasts. •Adjustable bar eye. •Hot-dip galvanized structure (painted reel). •Six-lever spool valve on swivelling arm •Hydraulic rotation of bearing centre plate with six levers •Engine-driven pump unit built into the machine structure. •Vacuum pump to empty the hose. •Dip tube ø 150 with revolving joint and basket ø 550.
